End Mill Triple-Flute Ø 3.175 mm
Technical Specifications:
- Solid Carbide-End Mill Ø 3.175 mm
- Triple-Flute
- Fishtail-Bottom
- Upcut-spiral

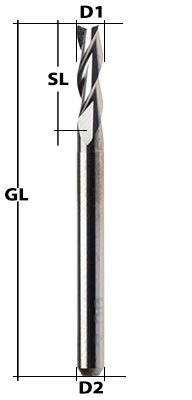

- D2 (Shank): 3.175 mm (1/8")
- SL (Spiral length): 15 mm
- GL (Overall length): 38 mm
Characteristics
- Industrial Quality
- Easy dive in into material through fishtail-bottom
Applications
- universally applicable
- Aluminium
- Hard Plastics
- All harder Materials
- "Short chipping" Aluminum
Notes:
- 0.85 x Spiral length = Usable Spiral length
- Further diameters and spiral lengths on request.
- Left spiral and/or left cutting mills on request.
