Product No.:
MZK.060.060.V20
immediately available, 2-3 Days immediately available, 2-3 Days  (abroad may vary)
Shipping weight:
0.015 kg per piece
13,90 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

Claw coupling 6 / 6 mm | Ø 20mm

Specifications:
  • Hole 6 mm / 6 mm
  • Continuous torque: 3 Nm
  • Peak torque: 6 Nm
  • max. rotation Speed: 15,000 rpm
  • Weight: approx. 20 g
  • Ø 20 mm
  • Length 31 mm

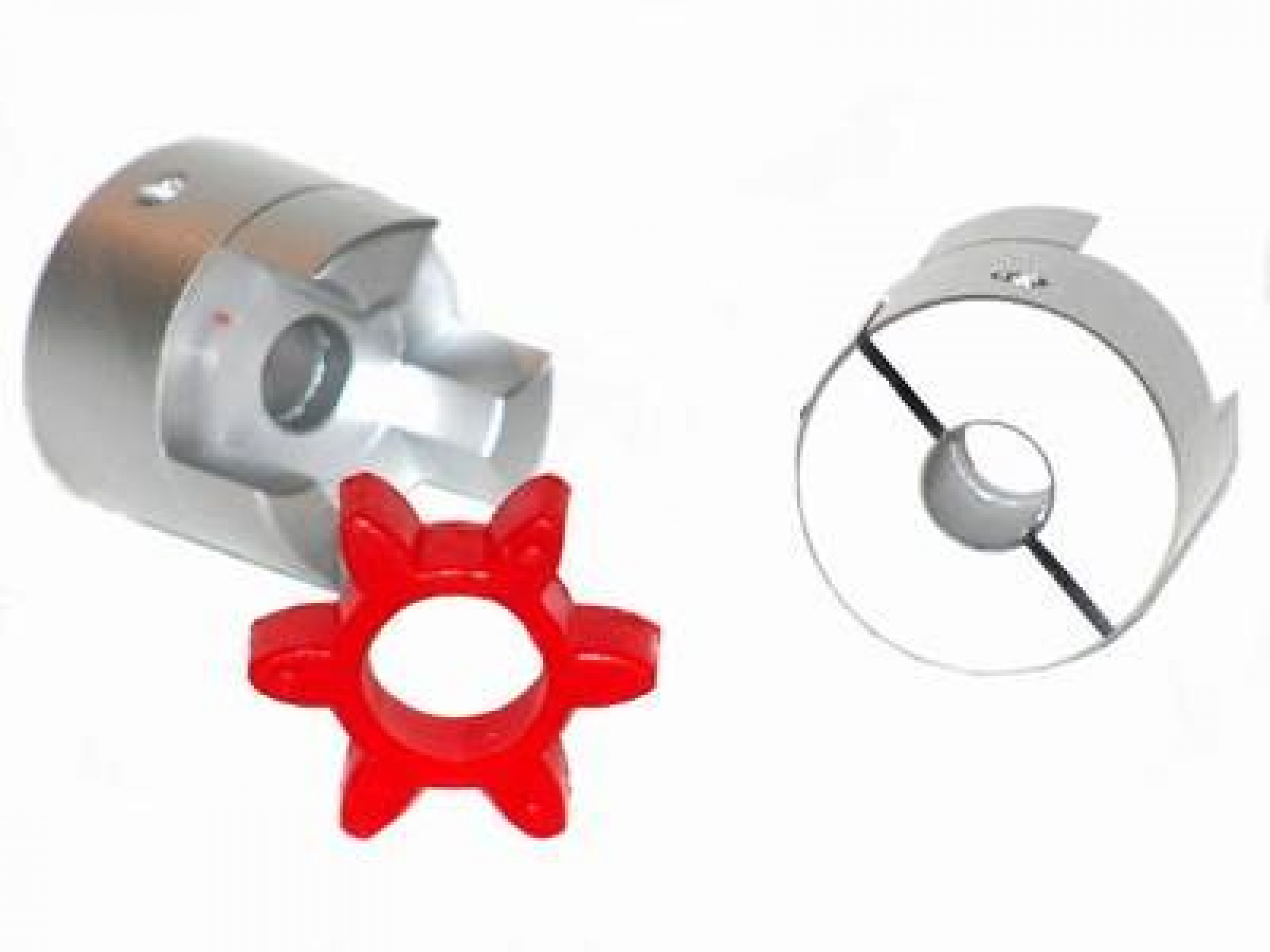

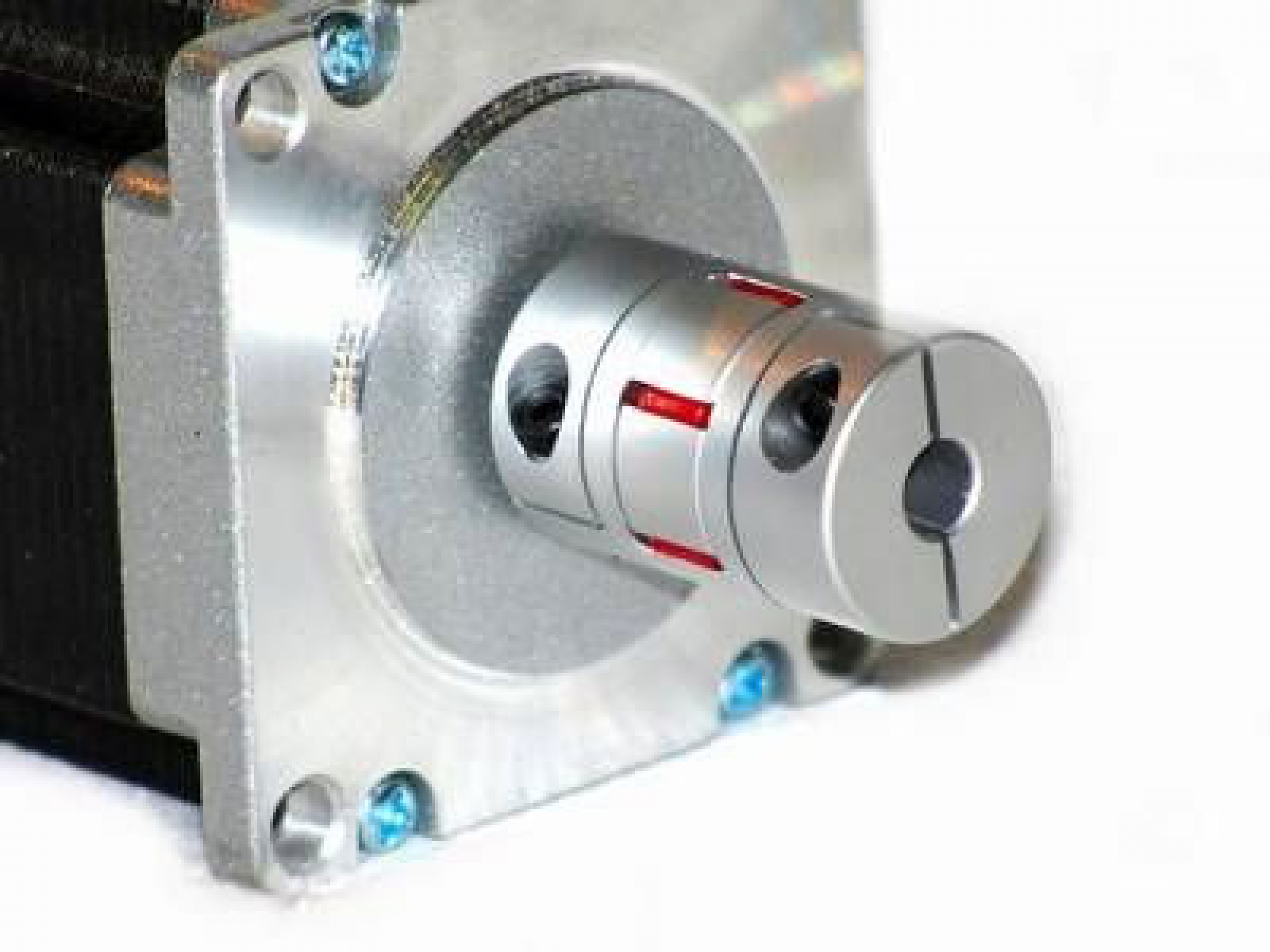

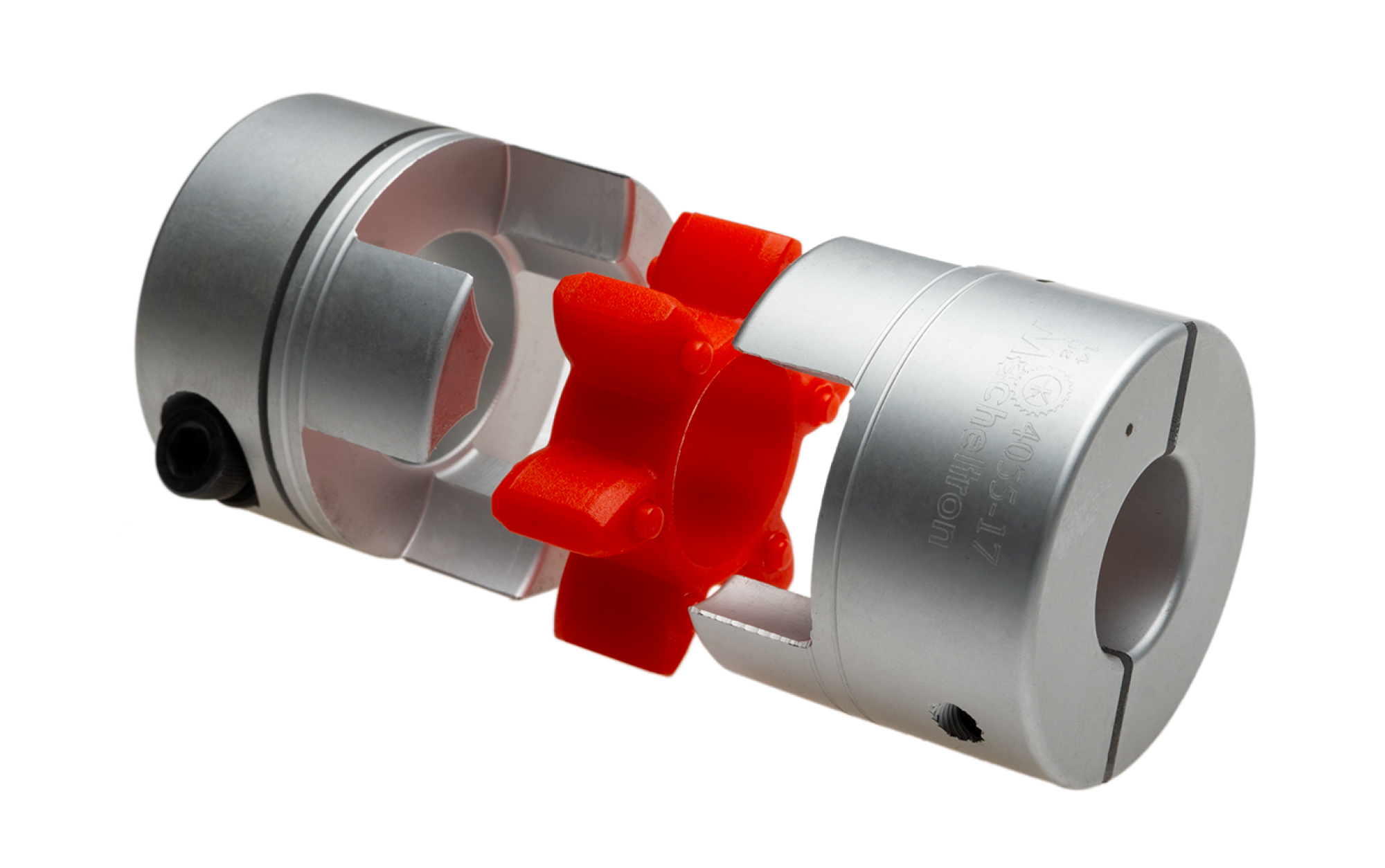

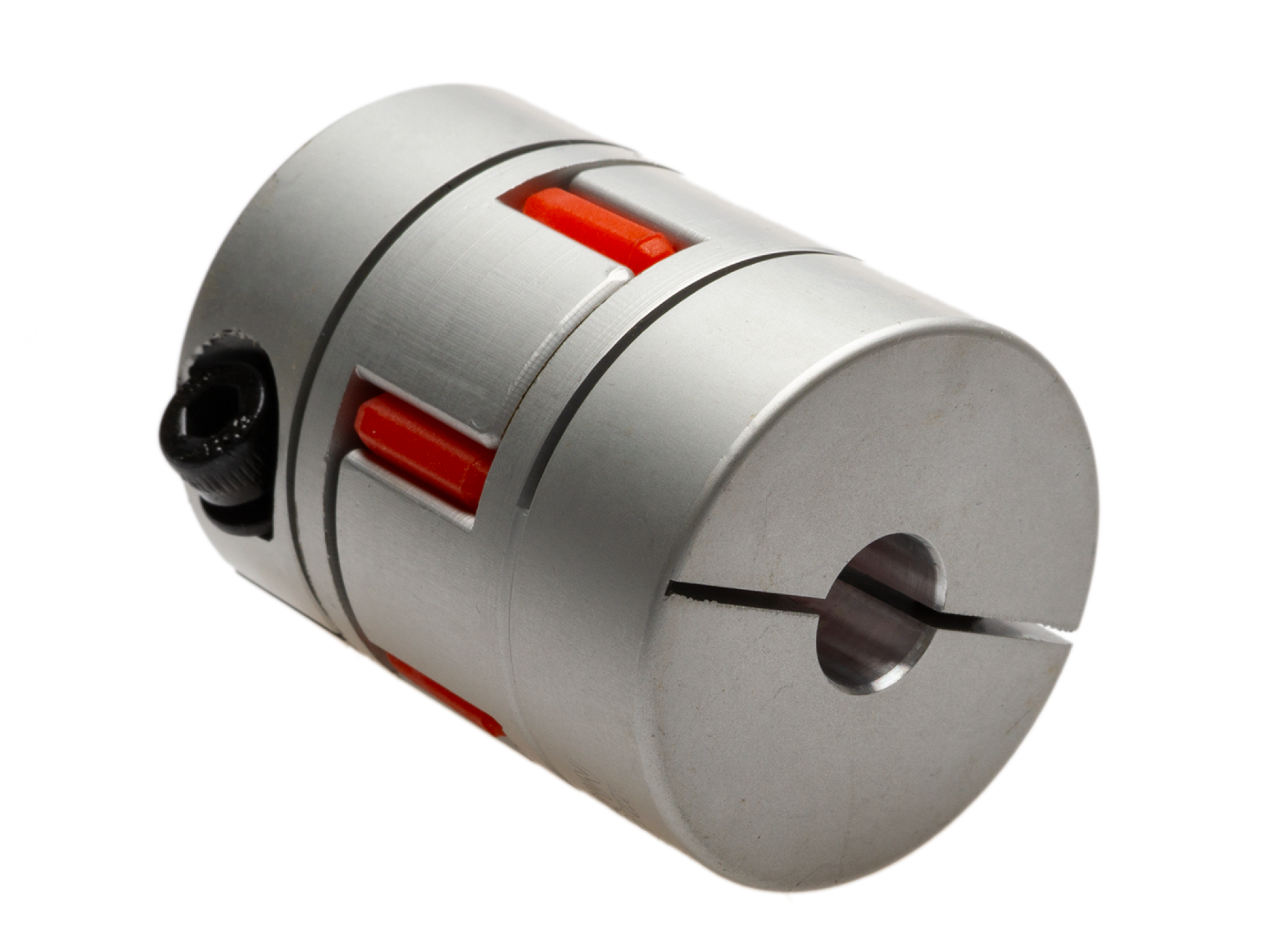

These high quality claw couplings made of anodized aluminum are characterized by a small size and light weight. The three claws ease a simple and rapid centering when mounting.
Documentation

  Datasheet
