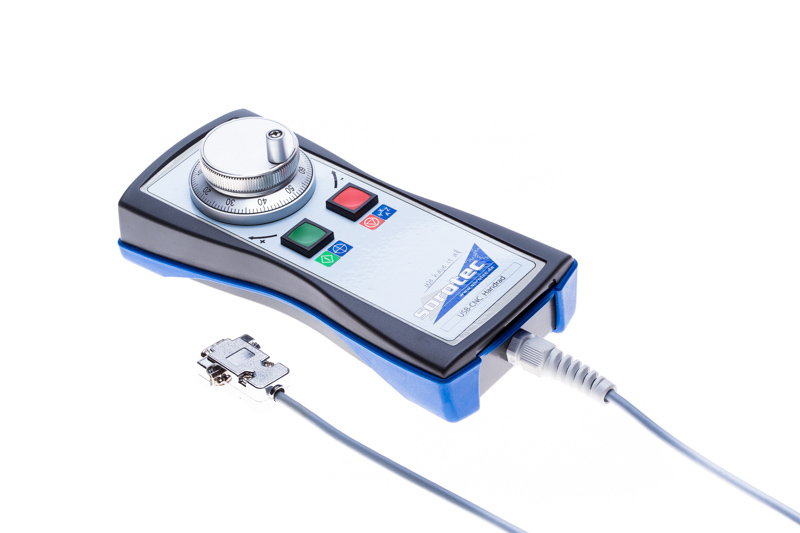

Handwheel for EdingCNC
Handwheel for EdingCNC-Controller
Ready assembled.
The Handwheel is provided with a connection cable and a SUBD-plug, whereby it can be attached directly at the EdingCNC-Controller and works immediately.
Scope of supply:
- 1 x Handwheel ready mounted
- 3 m flexible, shielded cable with plug (SUBD-9P)
Functions Handwheel:
With a hand wheel a CNC machine is much easier to operate. The setup of the machine is much more comfortable and safer than with a keyboard and mouse, which are also much more sensitive to pollution and fog cooling.
All axes can be set either in continuous or single step mode, proceeding with a step size of 1.0, 0.1 or 0.01 mm
In continuous mode, the machine can be positioned quickly, in single step operation the axis can be positioned precisely.
Functions in manual mode:
Green button: zero setting of the selected axis
Red button: select the next axis
Encoder: proceedings of the selected axis
Functions in automatic mode:
Green button: start program
Red button: pause program
Encoder: feed speed from 0 ... 300 % set
Operating instructions handwheel for EdingCNC (german)
