CUT-2D Desktop

Easy to use vector drawing and editing tools with powerful 2D machining strategies for CNC routing, milling or engraving

Cut2D Pro and Cut2D Desktop provide a powerful but intuitive software solution for cutting parts on a CNC Router. Both editions include tools for 2D design and editing and efficient 2D toolpath calculation.

The software can import 2D designs from other programs but also provides a full set of drawing and editing tools. The toolpath options cover all typical 2D routing operations such as Profiling, Pocketing, Auto-Inlays and Drilling. Each toolpath includes appropriate options to customize the settings and provide a high level of control for different types of operation. In addition all toolpaths can be previewed to show just how the part will look when it is actually cut, this allows instant feedback so toolpaths can be further optimized.

Cut2D includes the functionality demanded for complex work while remaining incredibly easy to use and affordably priced. The software is used by cabinet makers, wood workers, prop makers, plastic fabricators, hobbyists and in many other applications.

Features

• Complete set of 2D Design and Layout Tools
• Layer control, Guide lines, Snap Grid
• Text Editing + Single Line Engraving Fonts
• File Import - DWG, DXF, EPS, AI, PDF
• Image File Import - BMP, JPG, TIF, GIF
• Vectorize images to create vectors for machining
• Auto-Inlays with multiple options

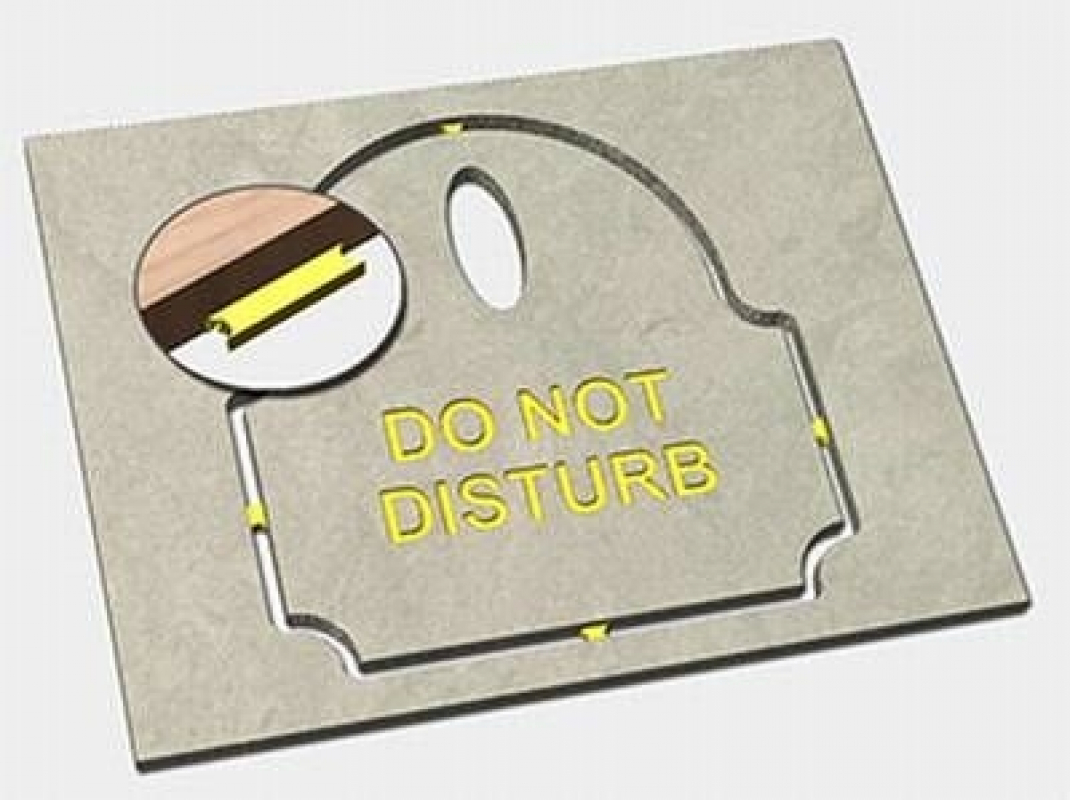

• 2D Profiling with Interactive Tabs / Bridges, Lead and Ramp options

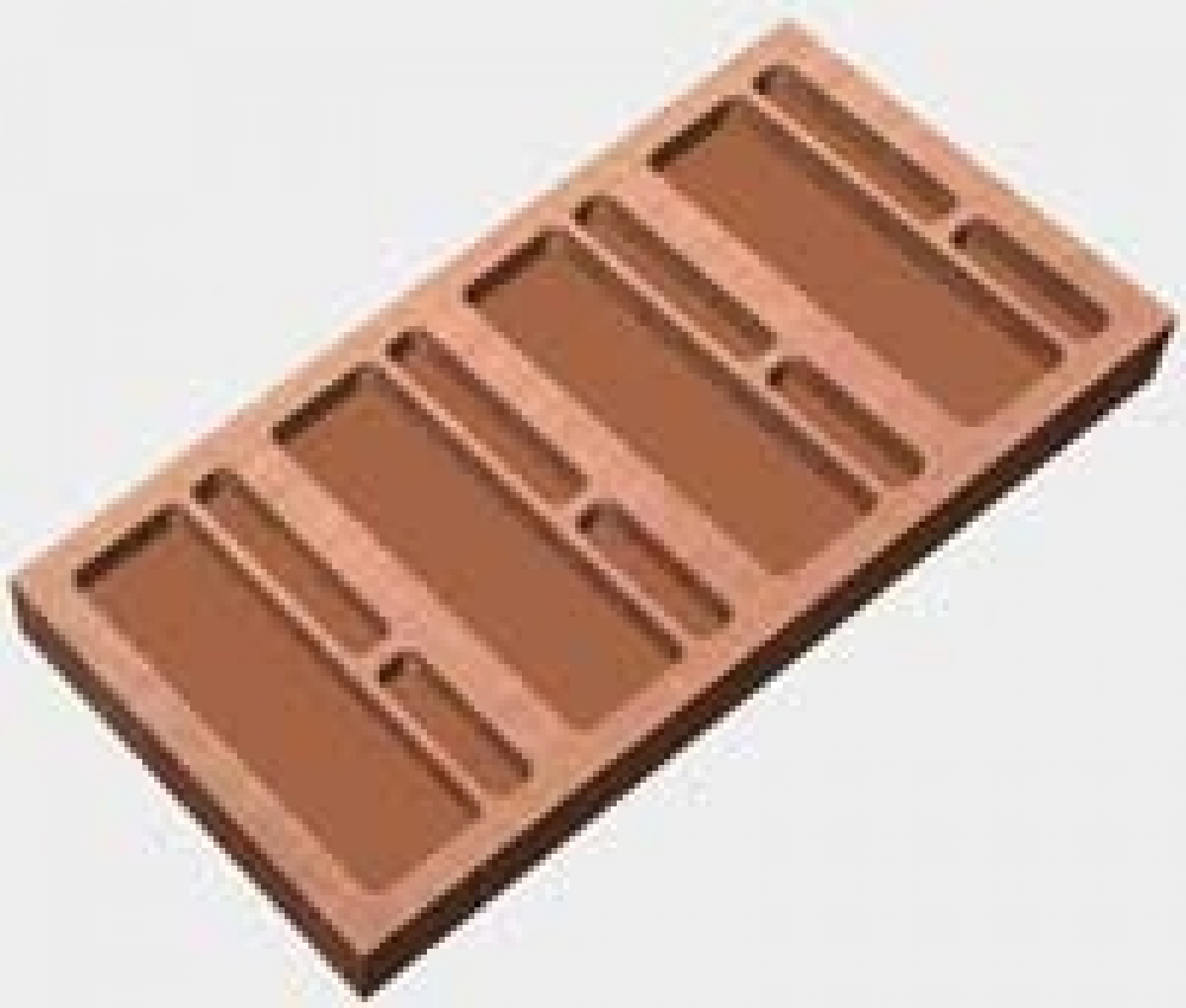

• Pocketing with optimization for 2 cutters
• Drilling with option for Peck Drilling
• Custom Molding and Form Cutters

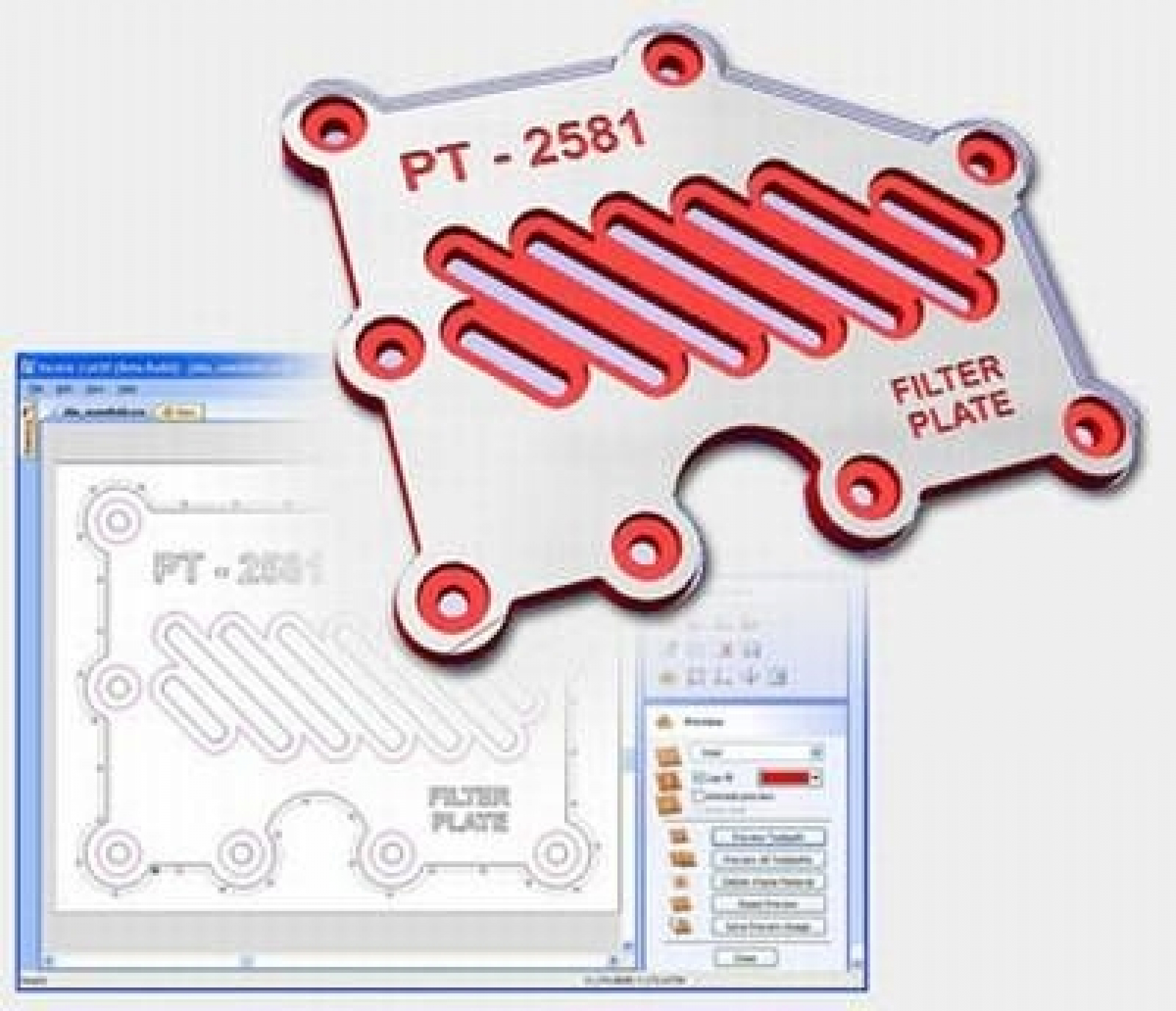

• Multi-color Toolpath Previews

• You have a small, light duty, CNC machine.
• You mostly work on parts that are smaller than 600mm x 600mm
• You do not require production level layout, cutting or toolpath optimisations
• You do not have a rotary axis on your CNC
• You are a hobbyist or maker on a tight Budget

Who should buy the Pro edition?
You should be looking at the Pro edition if:

• You have a CNC machine with a work area that is larger than 600 x 600 mm
• You are a commercial user such as Cabinet Maker, Sign Maker, Plastic Fabricator etc.
• You need to do production oriented work to maximize material yield or create multiple copies of the same part
• You are semi-professional and want access to all tools and features
• You specifically need any of the additional Pro production tools or features below

• Unlimited physical job or toolpath size (no 600 x 600 mm  limit)
• True Shape Nesting to optimize toolpath times & minimize material waste
• Toolpath Templates to automate & re-use your toolpath strategies
• Job Setup Sheets to automatically detail the required machine setup for each job
• Merge Toolpaths to optimize cutting paths & minimise air moves
• Scripting support to add your own custom functionality or to automate repetitive processes
• Access to the Gadget library of downloadable plugins
• Plate Layout to insert external data lists into your job designs
• Rotary Axis – Wrapping support

Rotary Axis Support
The only Vectric products that support output to a machine with a rotary axis (for doing wrapped work) are VCarve Pro and Aspire. Cut2D Desktop, Cut2D Pro and VCarve Desktop DO NOT support Rotary output.

Download of free trial
