Vacuum pump 3,0kw -340mbar

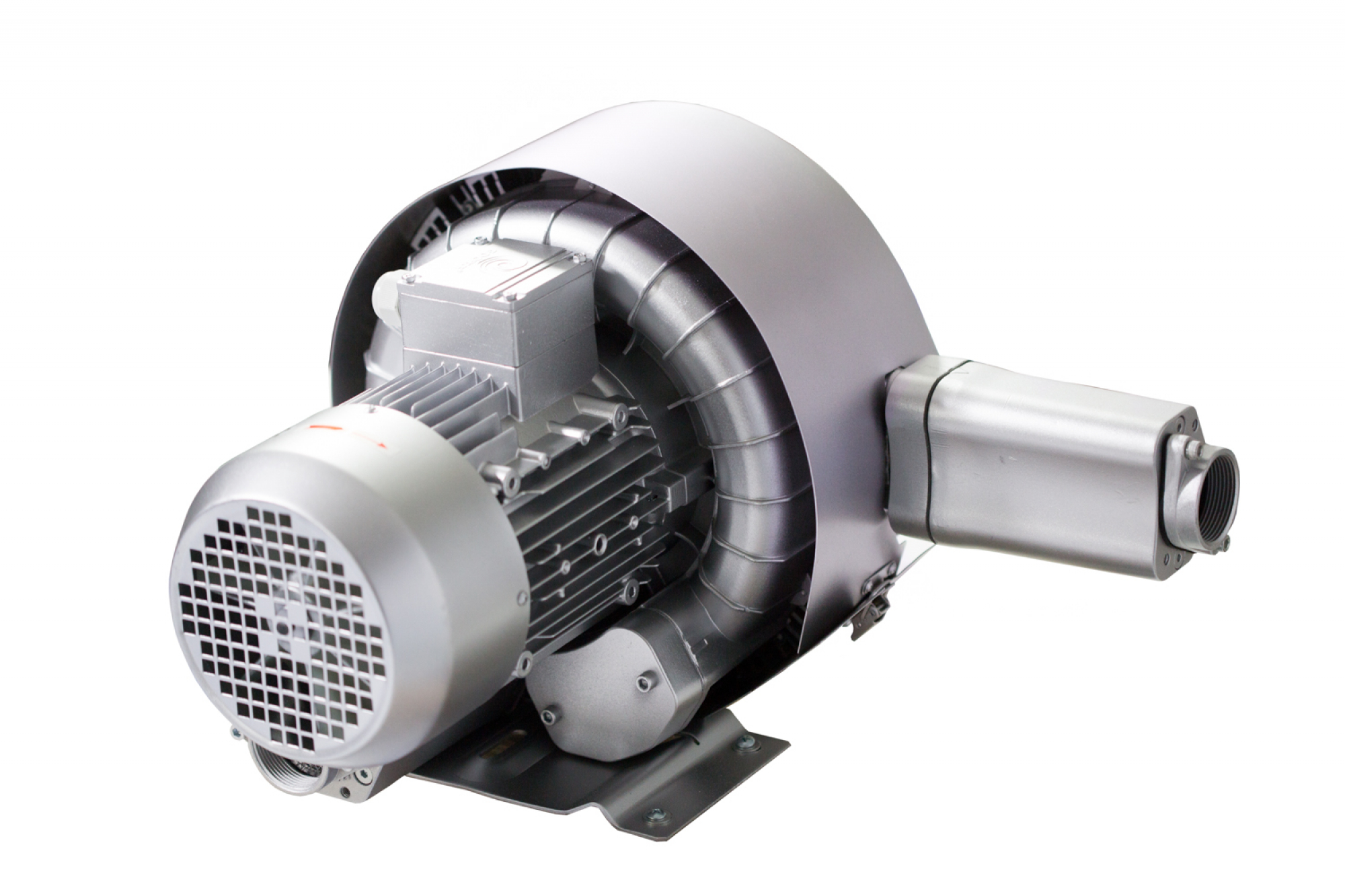

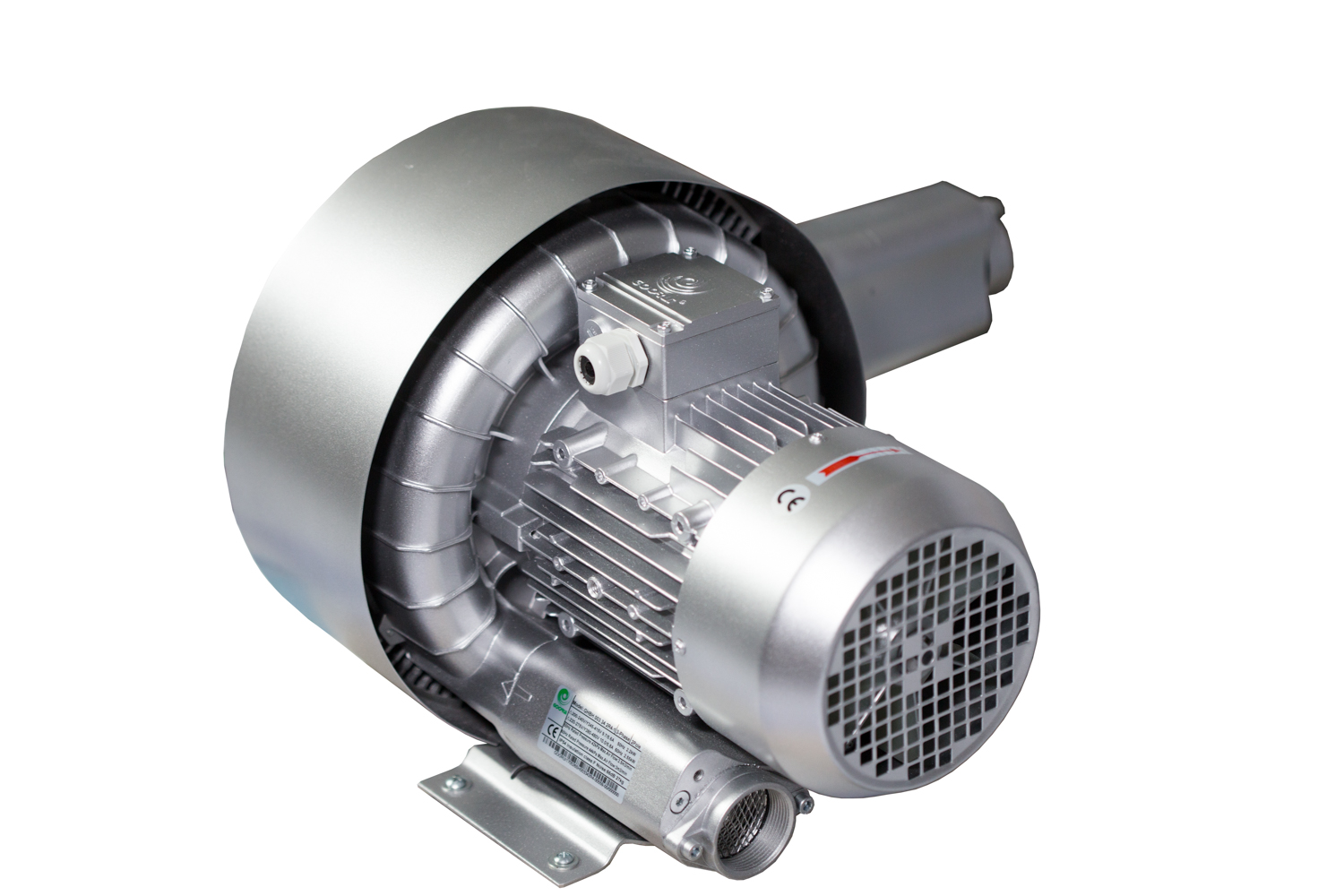

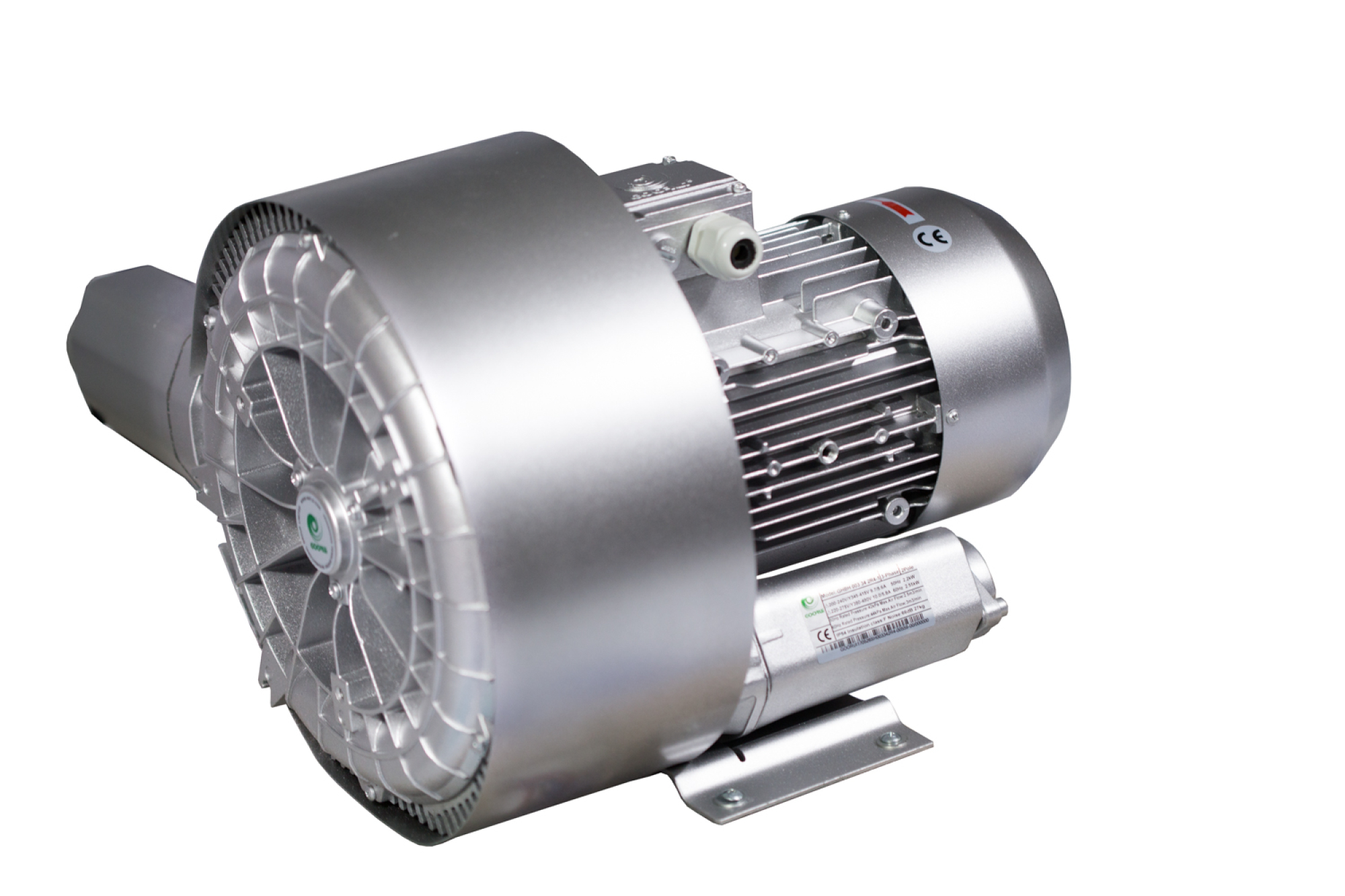

Side channel blower 3 kW / -340 mbar double-stage
The advantages of this double-stage Side channel blower are:- Economical and environmentally friendly,
Side channel blower stand out due to their low energy consumption. They are quiet and environmentally friendly as a result of oil-free compression. - Compact design
The motor is directly flange-mounted to the pump. - Low maintenance
Robust design, lifetime lubricated bearings and surface cooled motor guarantee a long service life for the pump.
- Phases: 3
- Power: 3000 Watt
- Voltage: 380 Volt
- Ampacity: 12,5 A
- Maximum flow rate: 230 m³/h
- Maximum static pressure: - 340 mbar
- Maximum static vacuum: 410 mbar
- Noise level: 72db (A)
- Dimensions L x B x H: 463 x 372 x 361
- Weight: 39 kg
Datasheet (english)
