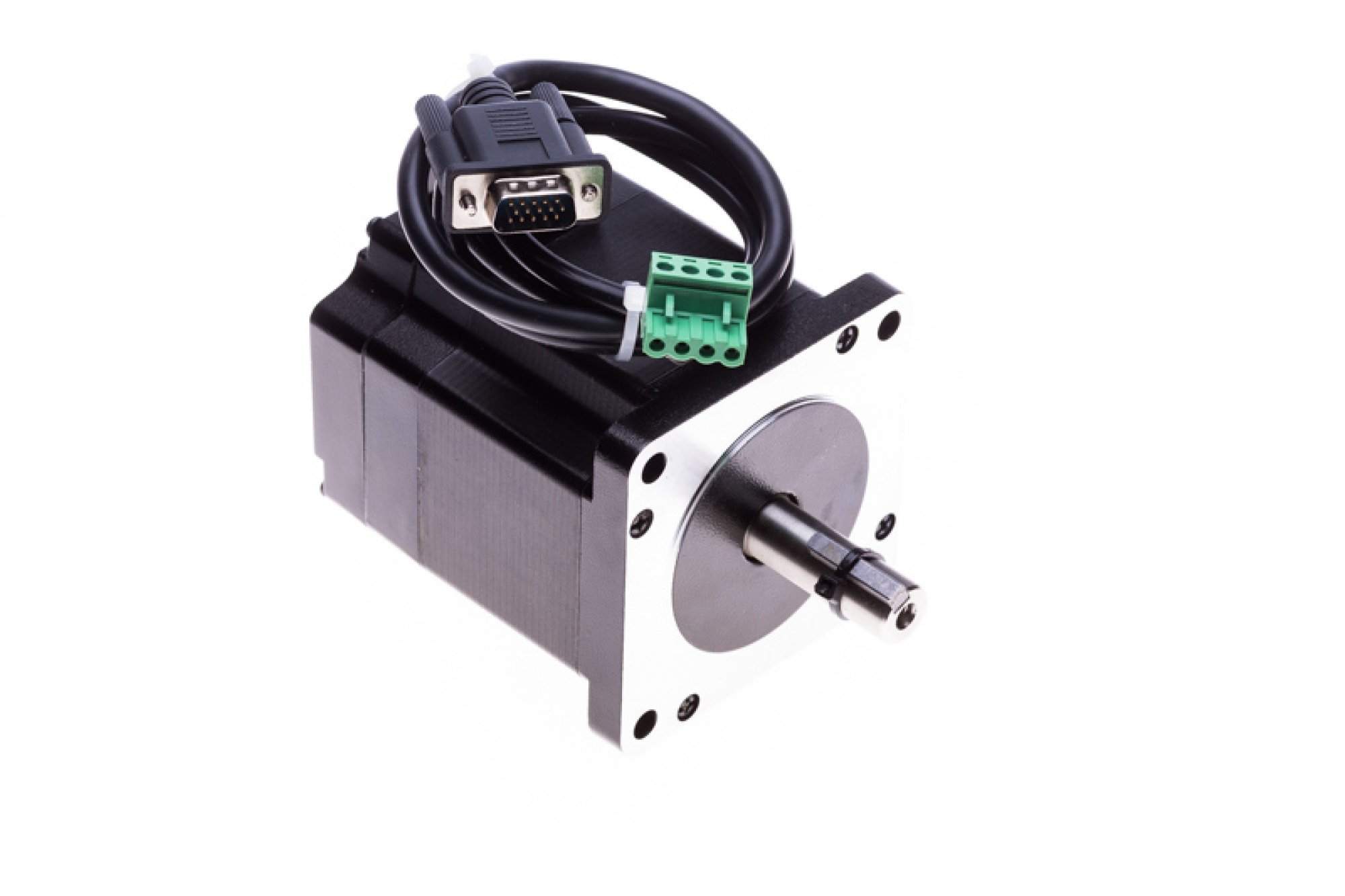

Hybrid Stepper Motor 4 Nm, ES-M23440
2-phase stepper motor with encoder
In combination with the suitable driver this motor makes up a hybrid servo closed loop system without loss of steps.
Technical Specifications:
- 2-phase hybrid stepper motor
- 1000-lines / Rev. encoder
- Standard Nema 34 dimensions
- High torque design
- Angle 1.8, 200 steps
- Size: 86 mm width & height, 100 mm length.
- Shaft; 14 mm with key
- Cable length 30 cm
- Weight: approx 2.5 kg
Data sheet german
