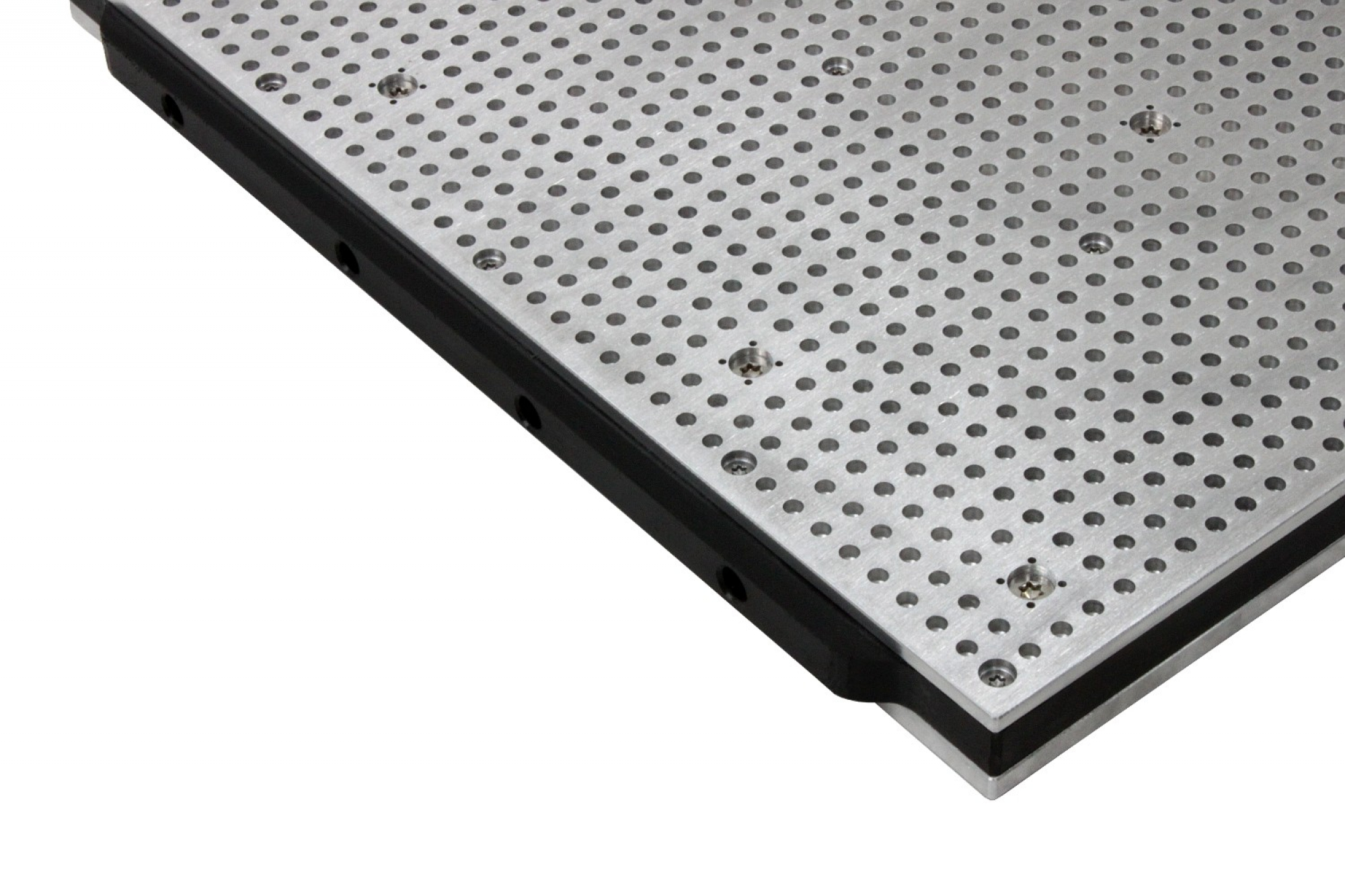

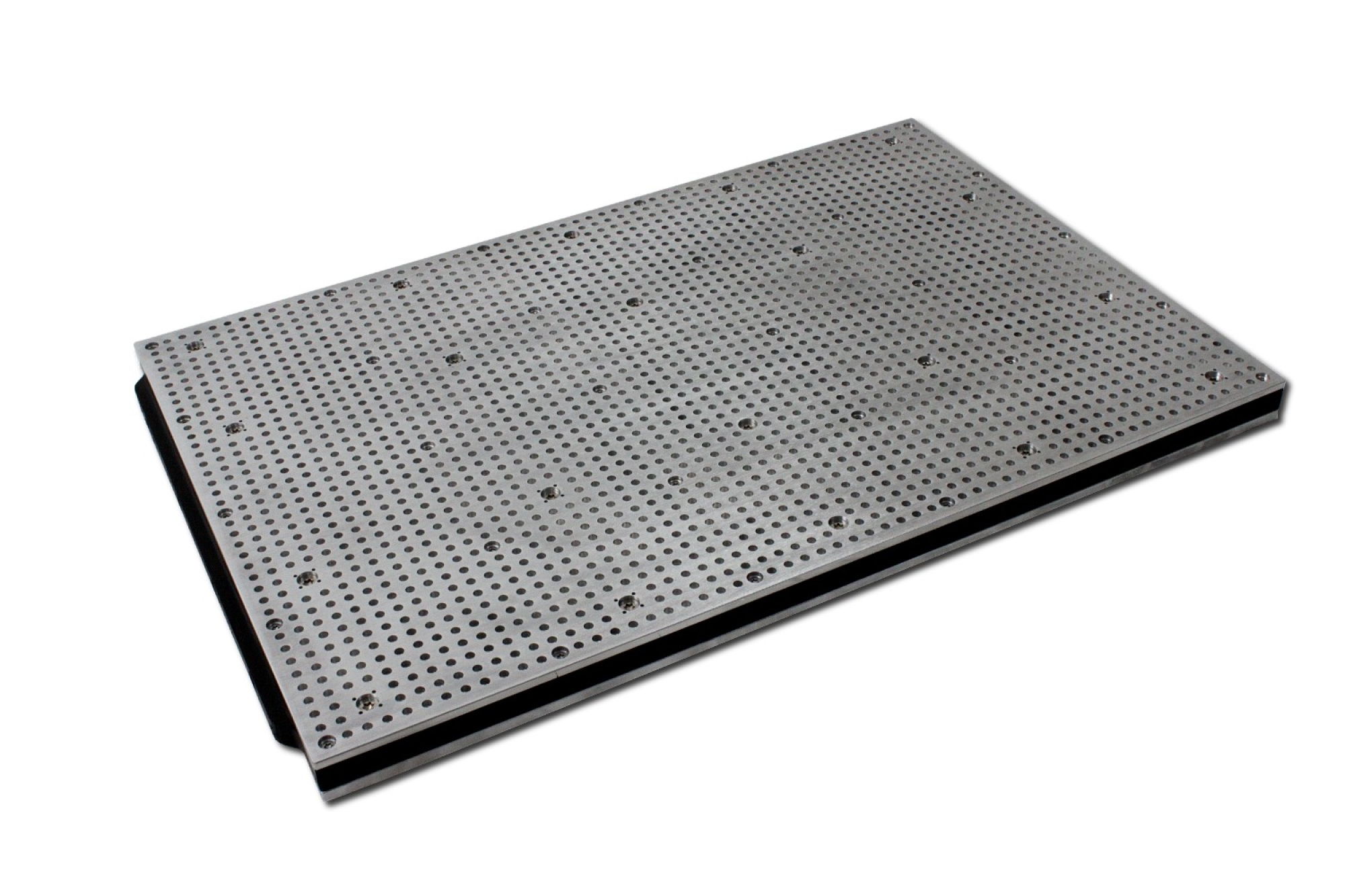

Vacuum table 6040 Seal 2 ALU

• Material: Aluminium, Polyethylen
• Measure: 610 x 400 mm
• Clamping area: 600 x 400 mm
• Hight: 29 mm
• Drillings: 0.3 mm
• Holegrid: 10 x 10 mm
• Hose conections: 10 mm

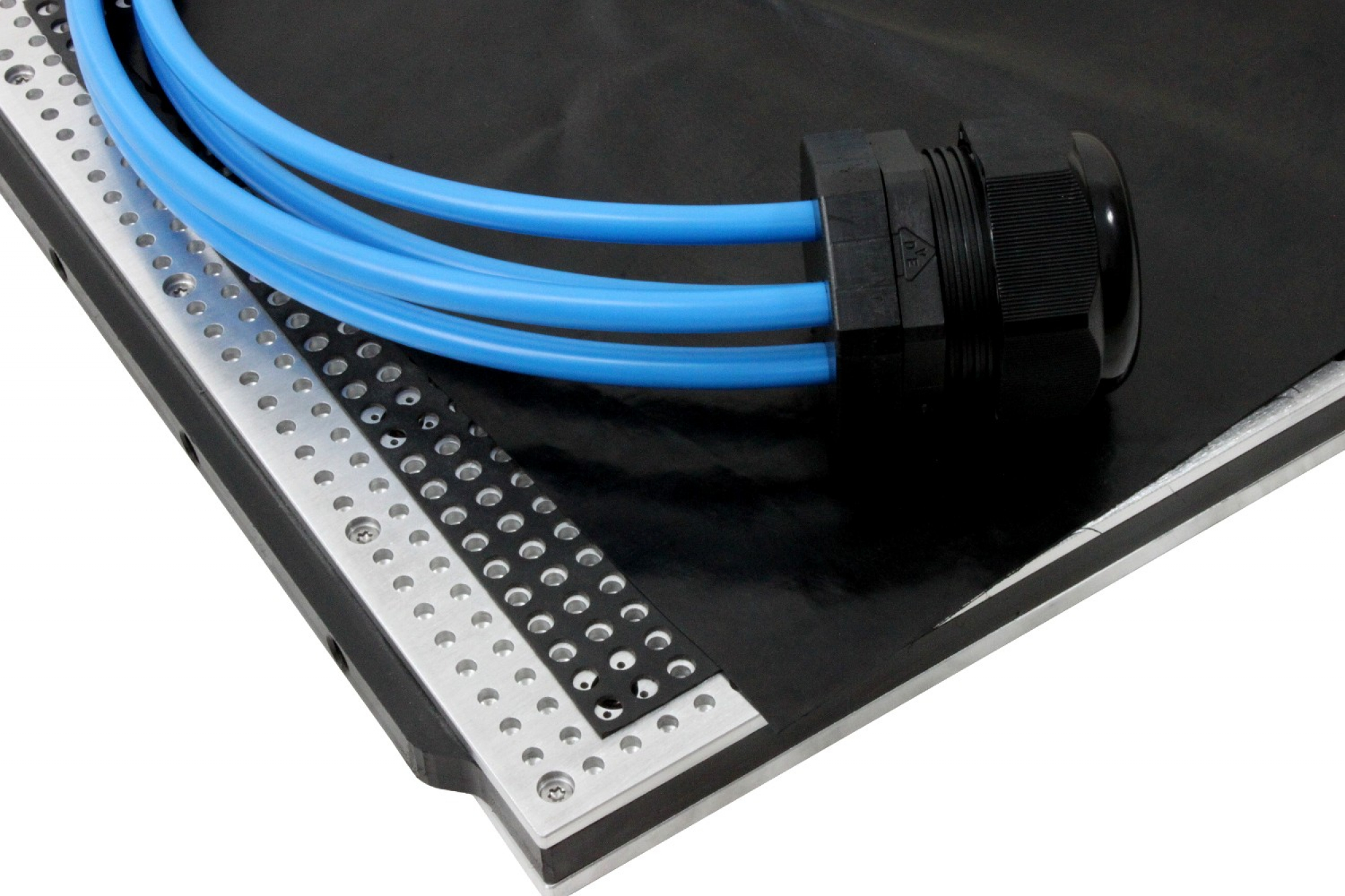

• Adaptermat: hole rubber mat

• 1x Vacuum table VT6040 SEAL
• 1x Vaccum conector
• 1x cover rubber mat
• 1x hole rubber mat
• 1x set connection hose

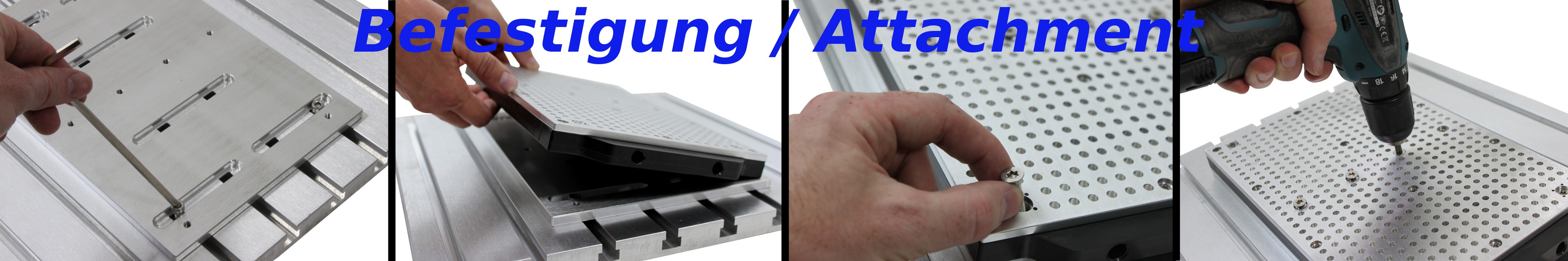

The vacuum tables of the SRT, ST and Seal series can have a curved surface. Therefore, the vacuum table should be screwed in place and planed before first use.

If necessary, the vacuum table can also be mounted on a plate.

If a plan milling is not possible or if the table is to be dismantled frequently, we recommend the vacuum tables of the GAL, GR or the Smart series.
