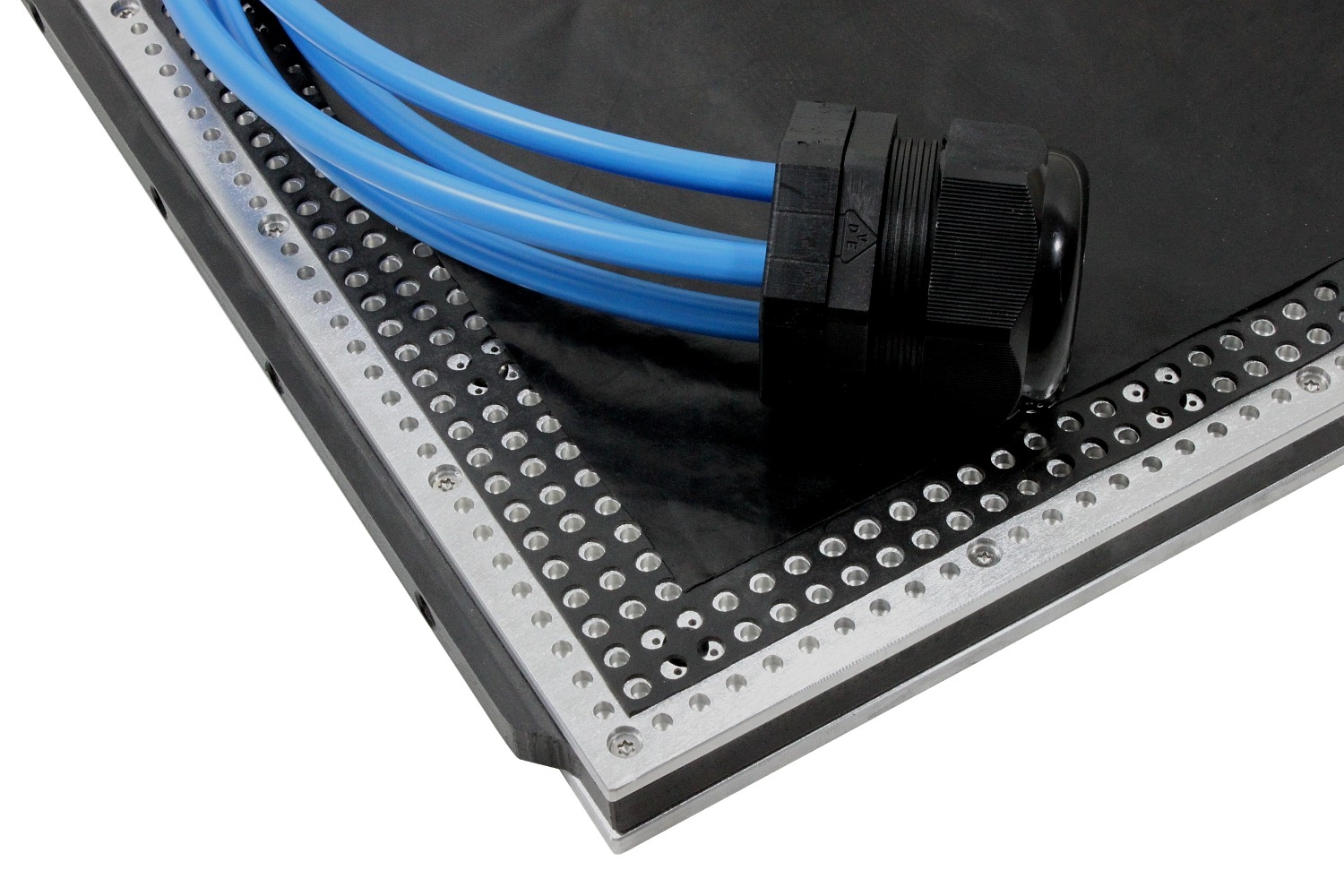

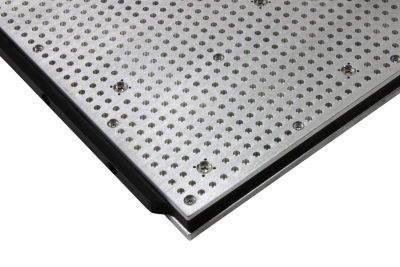

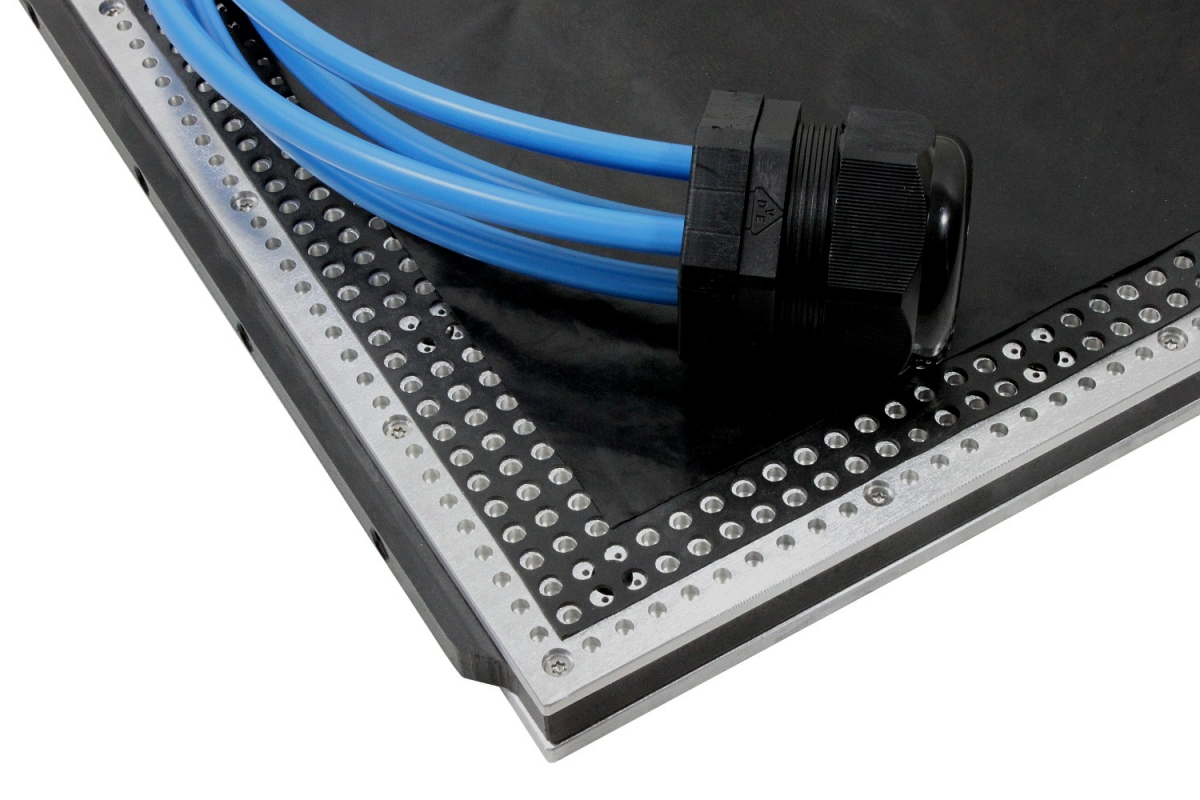

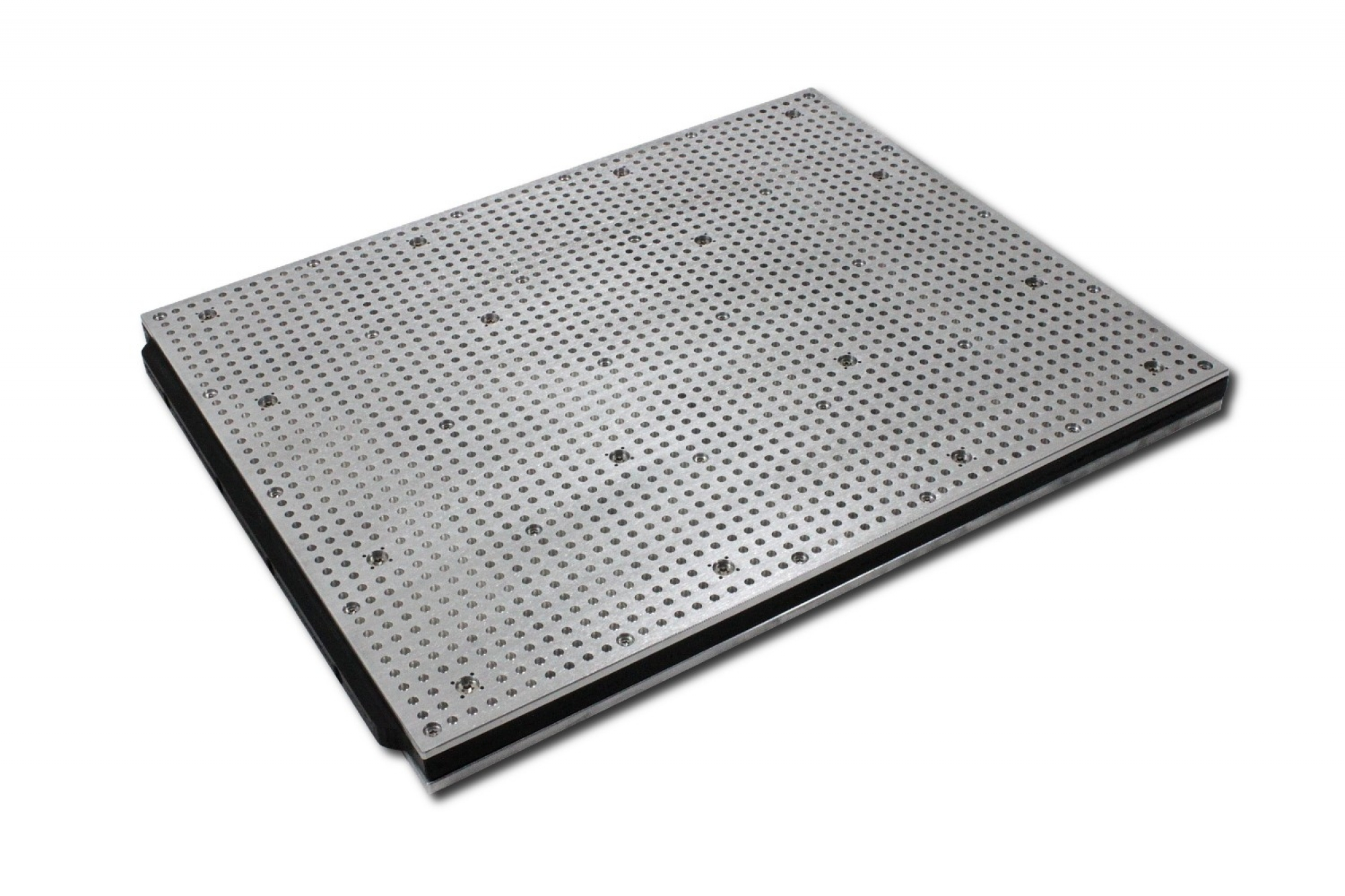

Vacuum table 5050 Seal 2 ALU
Vacuum table 5050 Seal 2 ALU
Technical data:- Material: Aluminium, Polyethylen
- Measure: 510 x 500 mm
- Clamping area: 500 x 500 mm
- Hight: 29 mm
- Drillings: 0.3 mm
- Holegrid: 10 x 10 mm
- Hose conections: 10 mm
- Adaptermat: hole rubber mat
- 1 x Vacuum table VT5050 SEAL
- 1 x Vaccum conector
- 1 x cover rubber mat
- 1 x hole rubber mat
- 1 x set conection hose
The vacuum tables of the SRT, ST and Seal series can have a curved surface. Therefore, the vacuum table should be screwed in place and planed before first use.
If necessary, the vacuum table can also be mounted on a plate.
If a plan milling is not possible or if the table is to be dismantled frequently, we recommend the vacuum tables of the GAL, GR or the Smart series.
Decision help vacuum pump
