Toolchange magazin for 10 Mechatron toolholders SK10 / ER16
Toolchange magazin for 10 Mechatron toolholders SK10 / ER16
Toolchange magazin for 10 Mechatron toolholders SK10 / ER16

Toolchange magazin for 10 Mechatron toolholders SK10 / ER16

Product No.:
WZW.MEC.MAG10.ER16
immediately available, 2-3 Days immediately available, 2-3 Days  (abroad may vary)
Shipping weight:
0.32 kg per piece
59,90 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

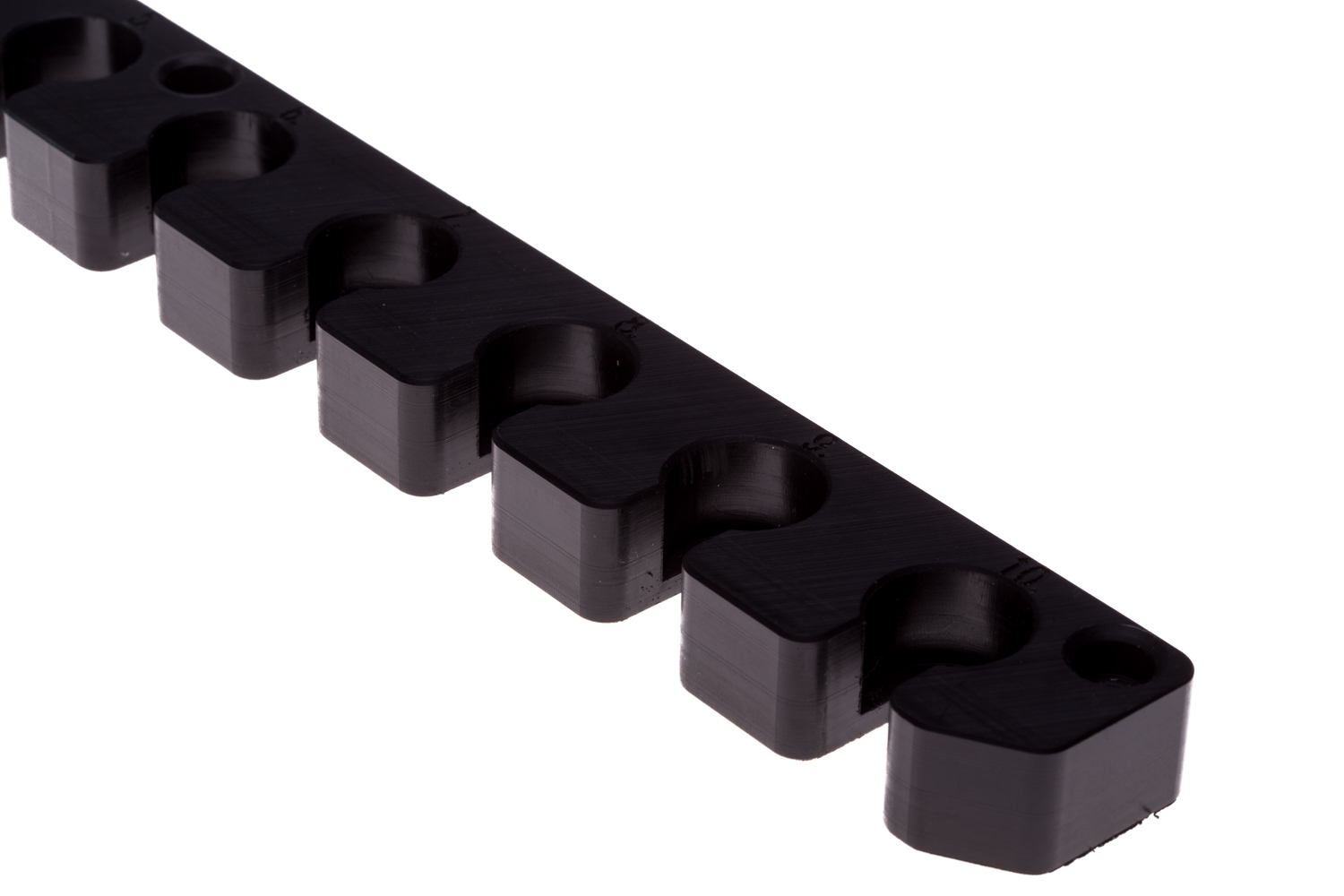

Toolchange magazin for 10 Mechatron toolholders SK10 / ER16

Plastic magazine incl. 3 x screws and feet.

Screws: M6x100
Feet: 80 mm
Distance mounting holes: 400 mm
Distance toolholders: 50 mm
Dimensions magazine: 490 x 38 x 20 mm
Documentation

  Technical Drawing

  Step file

  Information sheet for tool holder magazines
