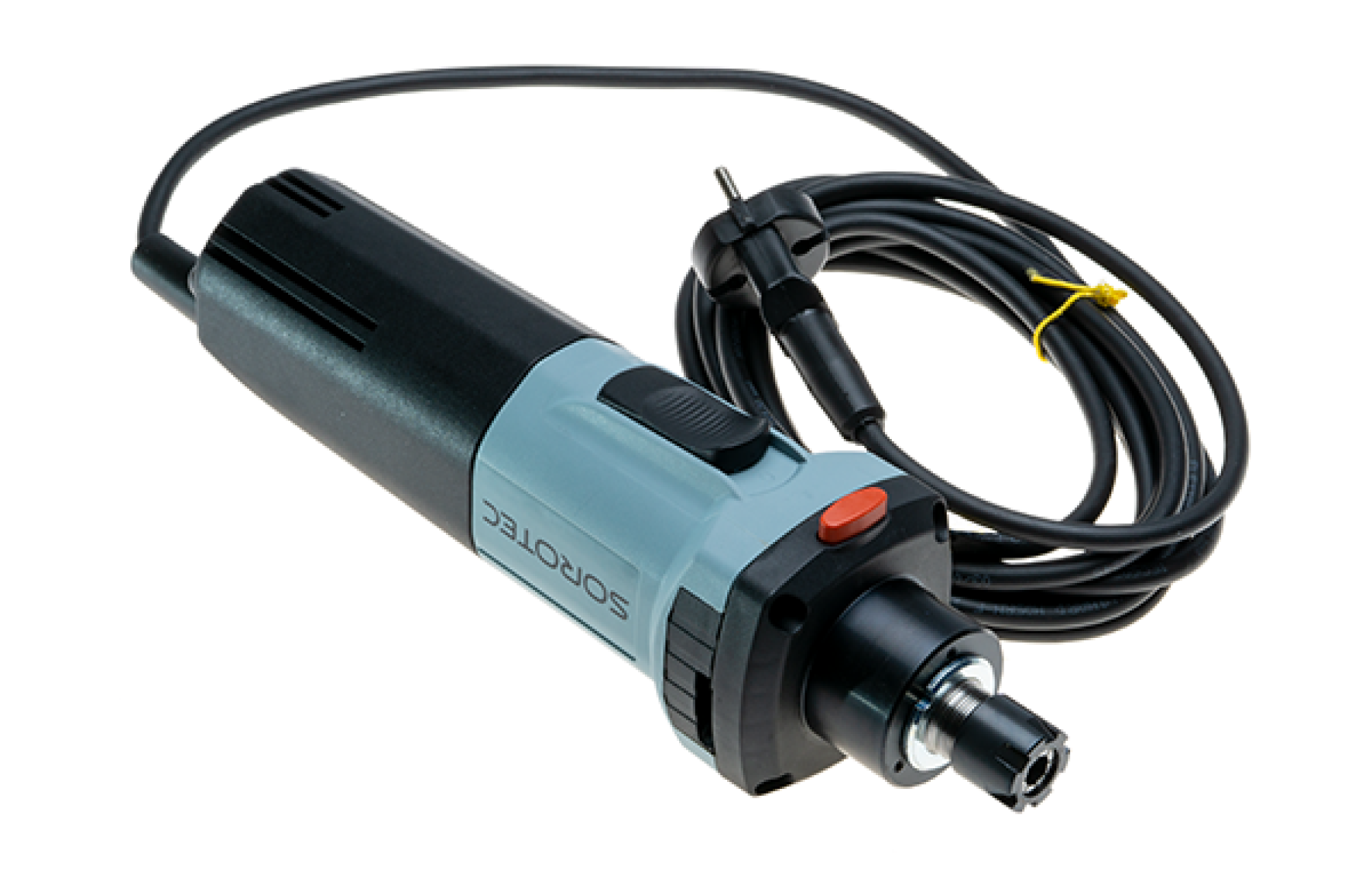

Milling Motor Sorotec SFM 1000 PV-ER

Duo-In: The speed can be adjusted to any application, manually or via the gantry interface (0 ... 10 V).
The cable for speed control (individually € 23.99) is already included.

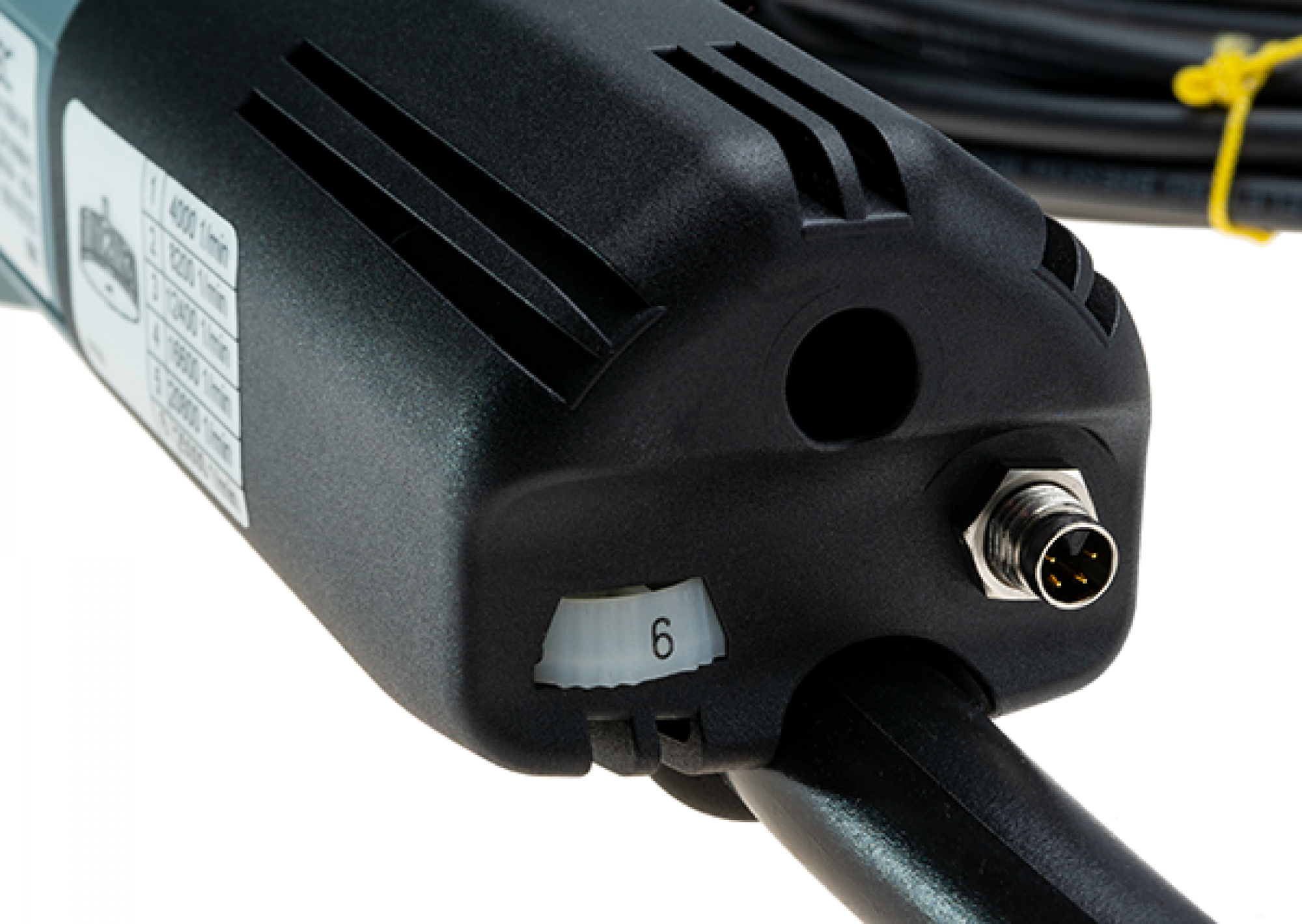

Overload detector with LED status display, can also be evaluated externally via plug pin.

After production at Mafell, the SFM 1000 is subject to the same strict quality controls as the original. The first-class equipment is no different either.

Infinitely variable, digital speed control with soft start, idle speed reduction, constant speed under load and overload protection. High-precision concentricity of <0.05 mm at a distance of 25 mm (<0.01 mm in the cone) through coordination of all components and manufacture and balancing of armature and spindle in one piece. A closed double ball bearing is used to better absorb axial forces.

Unique feature: overload display by changing the speed setting wheel lighting to red.

The spindle can be locked at the push of a button for easy and convenient tool changing.

Scope of delivery:

• Milling motor
• Collet ER16 8 mm

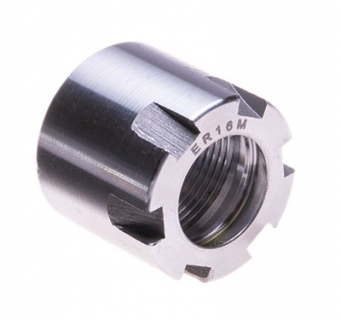

• Clamping nut
• Power cord 4 m
• Control cable for 0 ... 10 V signal
• Wrench
