Parts set ALU-Line Heavy Gantry 1510

Due to the large dimensions, profiles and recirculating ball screws with higher cross-sections are installed in the ALU-Line Heavy. Additionally, the Heavy Gantry version comes with two external X-drive spindles for twice the power.

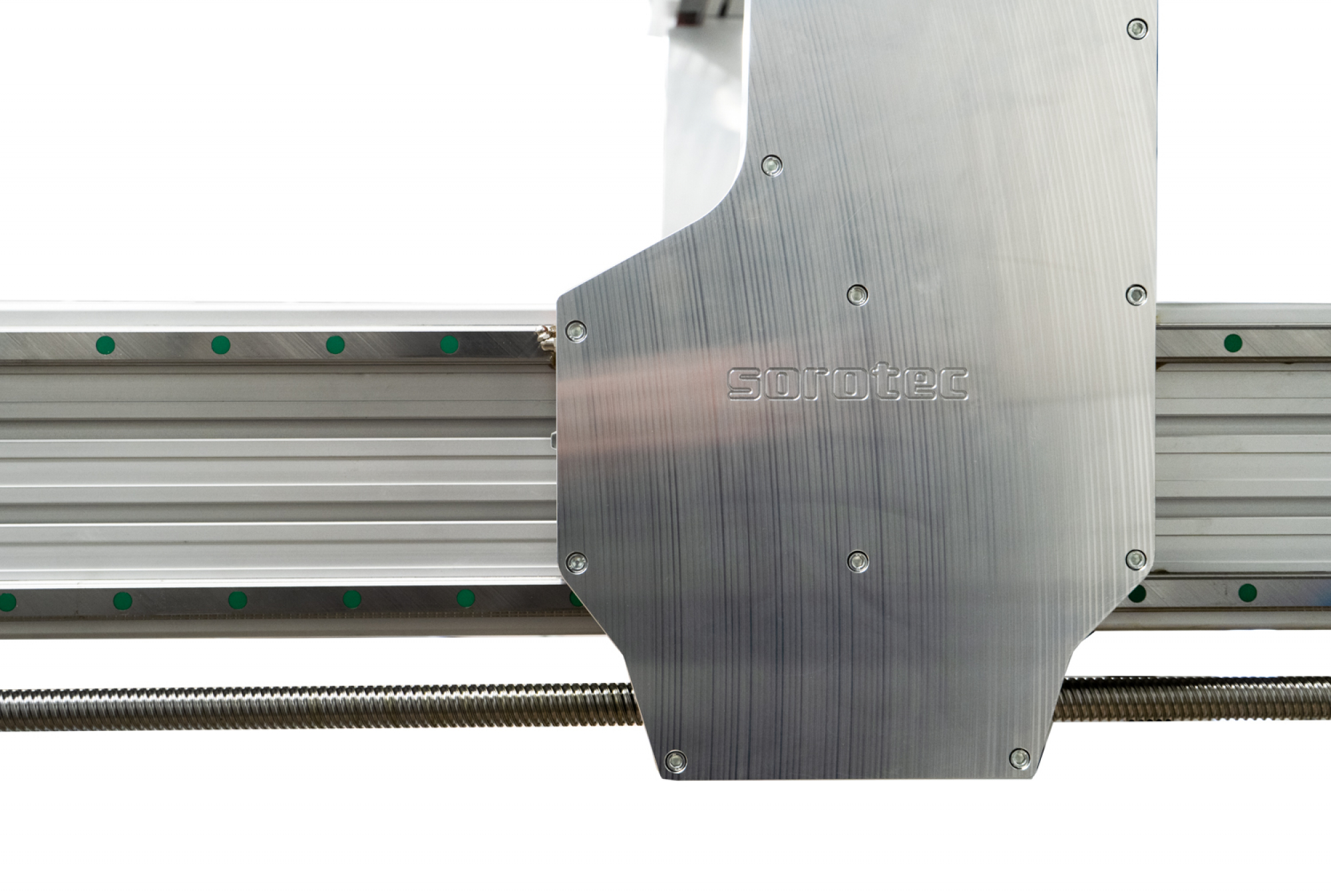

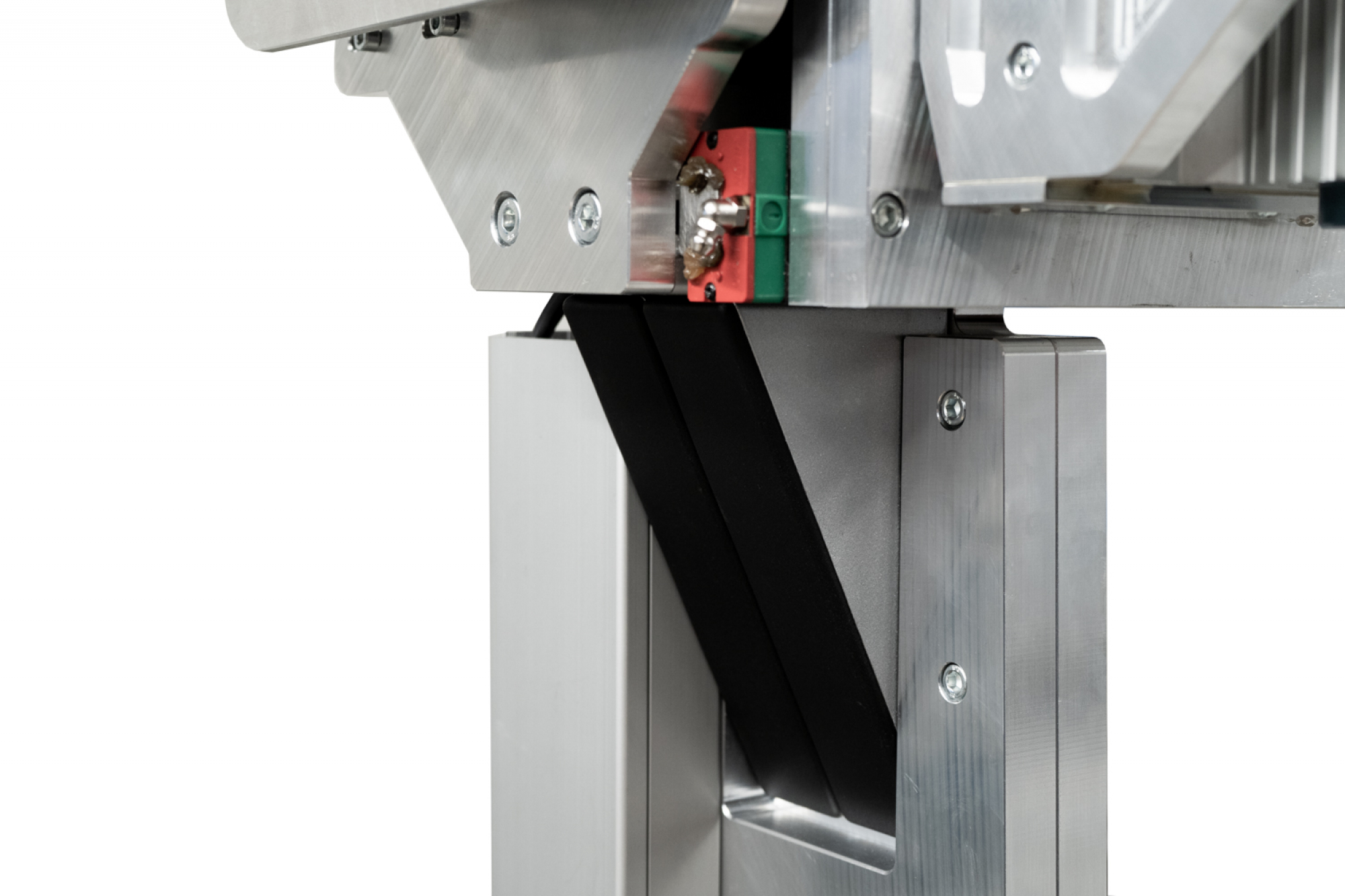

On the X axis, the 90 x 90 profile is replaced by a 180 x 90 profile to reduce deflection to a minimum. Two linear guide rails are mounted on the 180 profile on each side in order to achieve an even higher stability of the portal.

Our machines are equipped with pre-tensioned 20 mm HIWIN linear guides to reduce any vibrations that may occur.

With this kit you get all the necessary parts for the mechanical construction of the portal milling machine. The drag chains and stepper motors are not included.

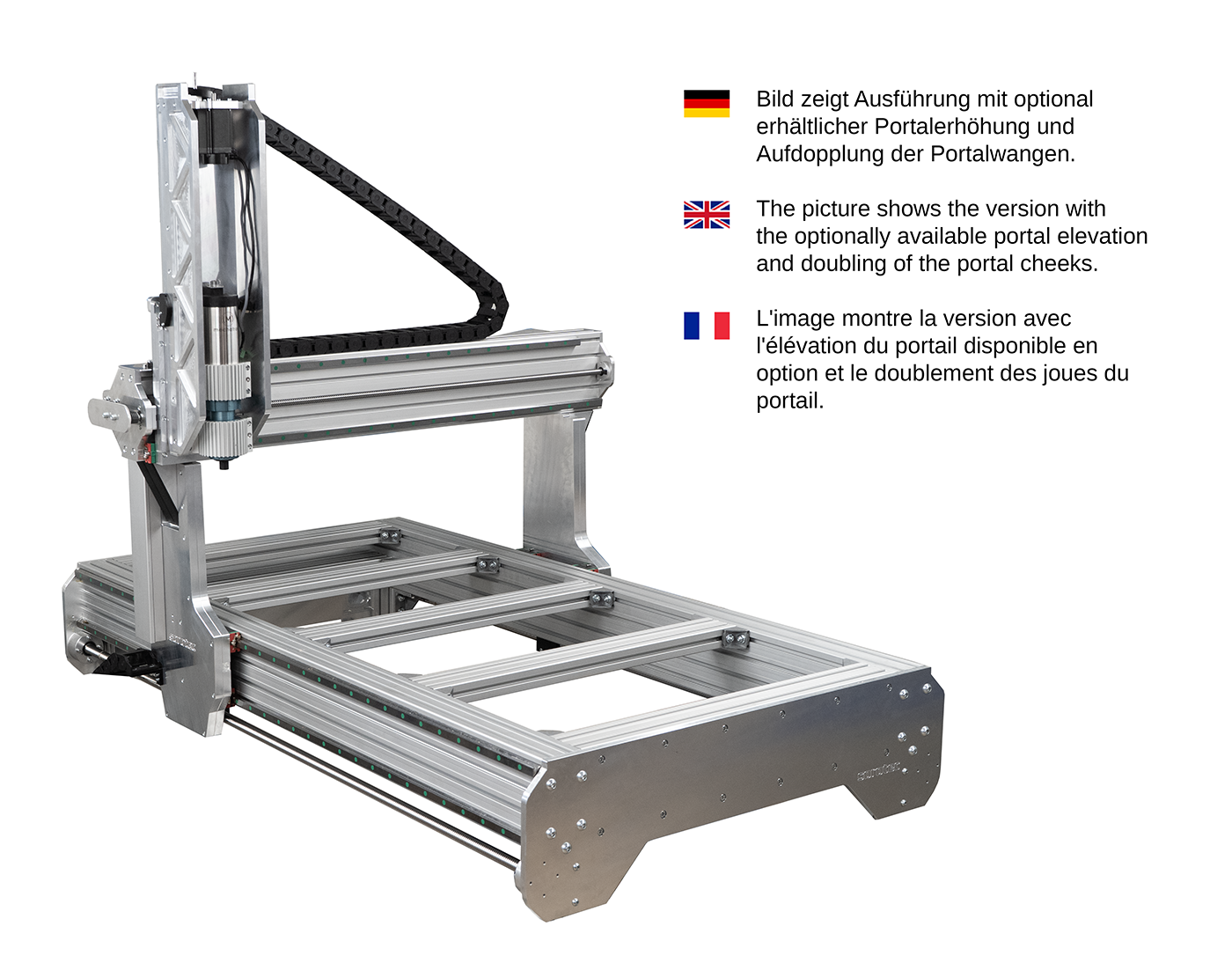

The mechanism is delivered in individual parts for self-assembly. The pictures show the fully assembled state. After completion, the parts set presented here represents what is known as an "incomplete machine" in the EC Machinery Directive. This must be supplemented by adding further components to form a finished machine. The housing and the functional safety module (operator protection) offered by Sorotec can be used for this. Also read this Information sheet.

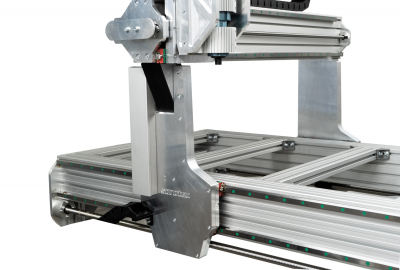

• 2 spindles outside on X-Axis
• Aluminium profiles and machined parts
• linear guides and carriages size 20
• Ball screw spindles
• HTD belts and pulleyes (for 8mm shaft)
• Mechanical reference switches for all axes
• Complete set of screws
• Assembly instructions

• Mounting Kit for Electric
• Machine feet
• Stepper motors
• Controllers
• Drag chains
• Control software
• CAD/CAM Systems
• Spindles (with and without tool changer)
• Frame
• T-Slot tables
• Cooling systems
• Housing
• further accessories

Delivery time on request
The shop can not calculate shipping costs, please contact us in case of order by email or phone.
