Sorotec Alu-Line 2010 Heavy Gantry DIY Kit
Due to the large dimensions, profiles and recirculating ball screws with higher cross-sections are installed in the ALU-Line Heavy. Additionally, the Heavy Gantry version comes with two external X-drive spindles for twice the power.

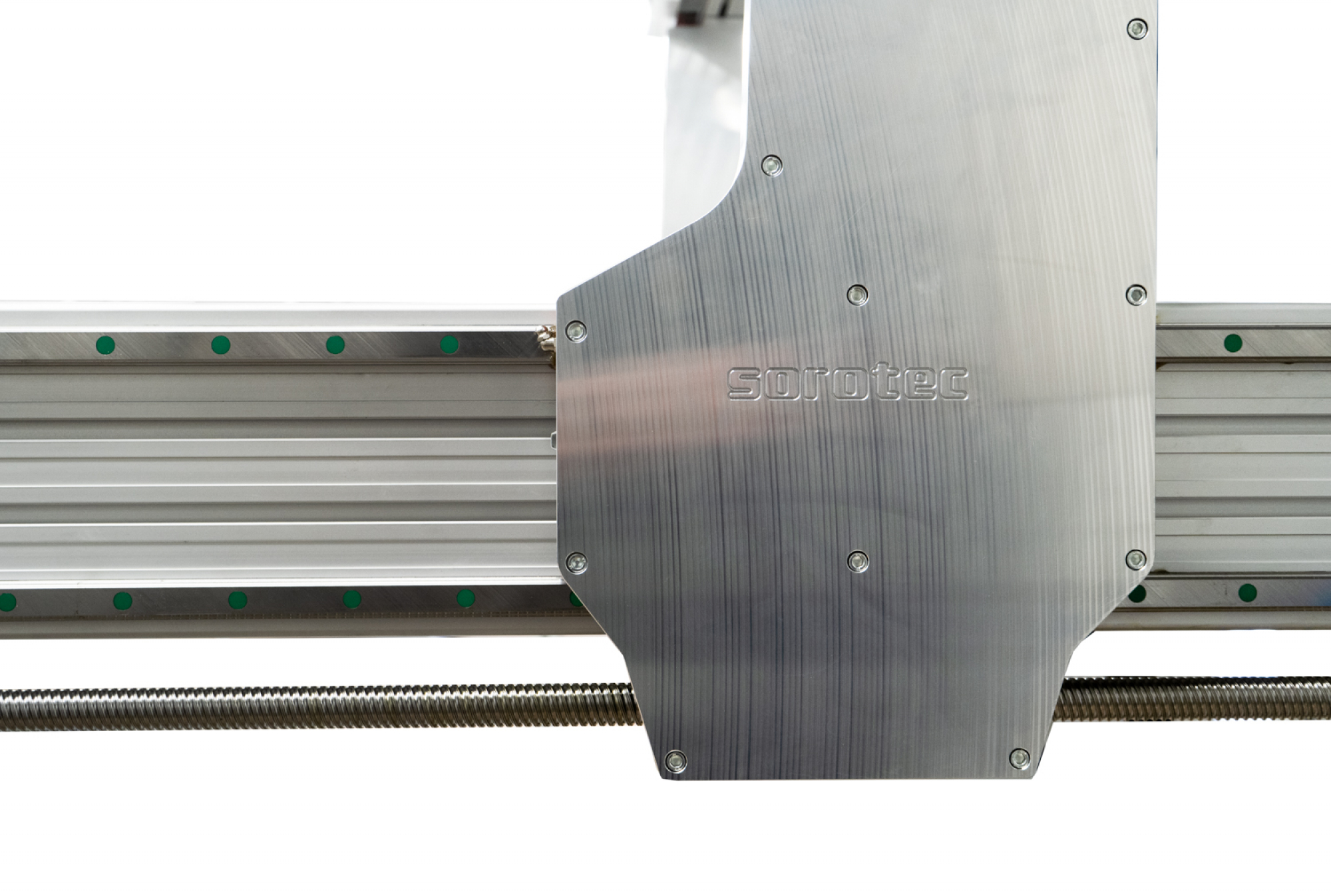

On the X axis, the 90 x 90 profile is replaced by a 180 x 90 profile to reduce deflection to a minimum. Two linear guide rails are mounted on the 180 profile on each side in order to achieve an even higher stability of the portal.

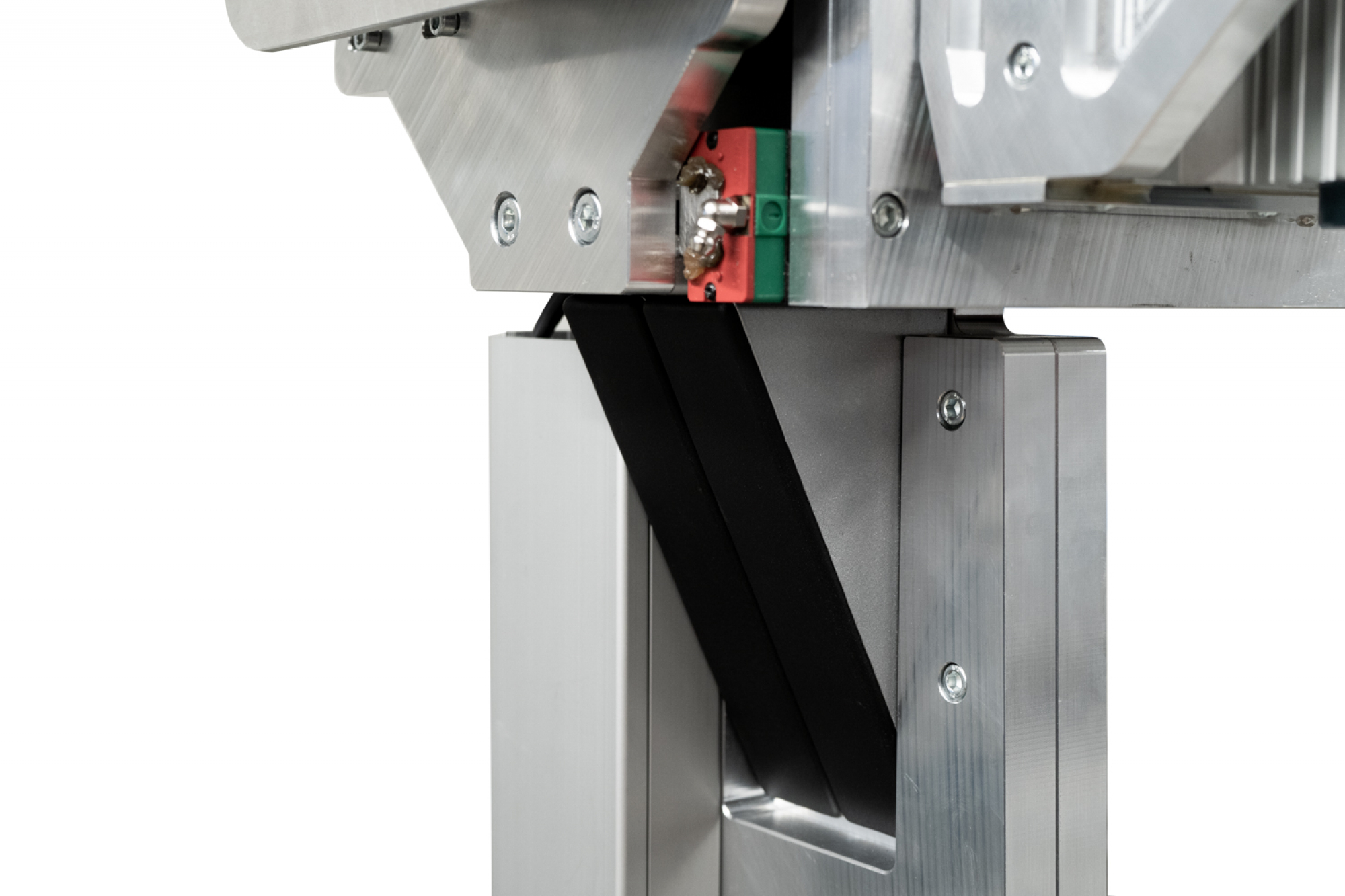

Our machines are equipped with pre-tensioned 20 mm HIWIN linear guides to reduce any vibrations that may occur.
With this kit you get all the necessary parts for the mechanical construction of the portal milling machine. The drag chains and stepper motors are not included.

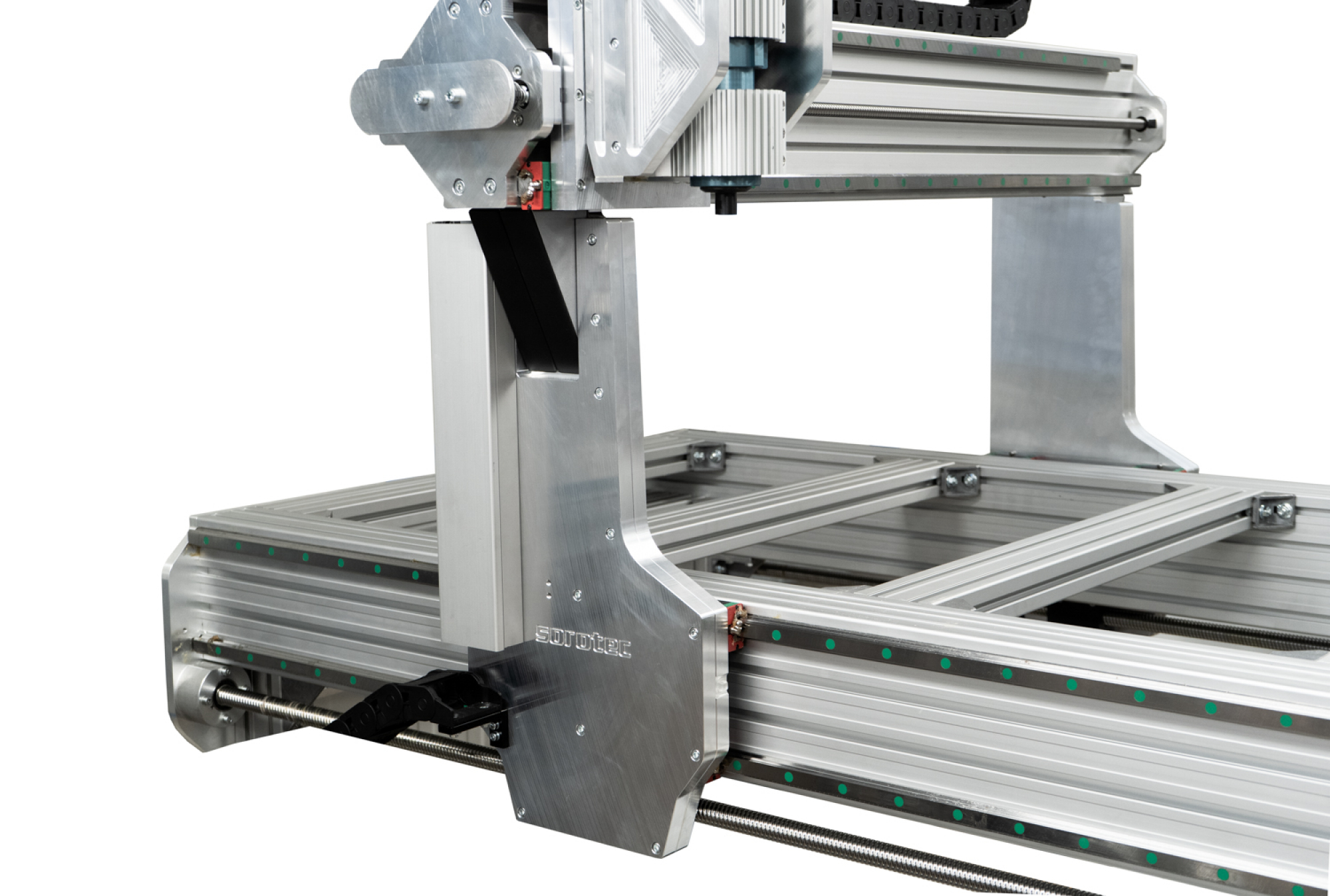

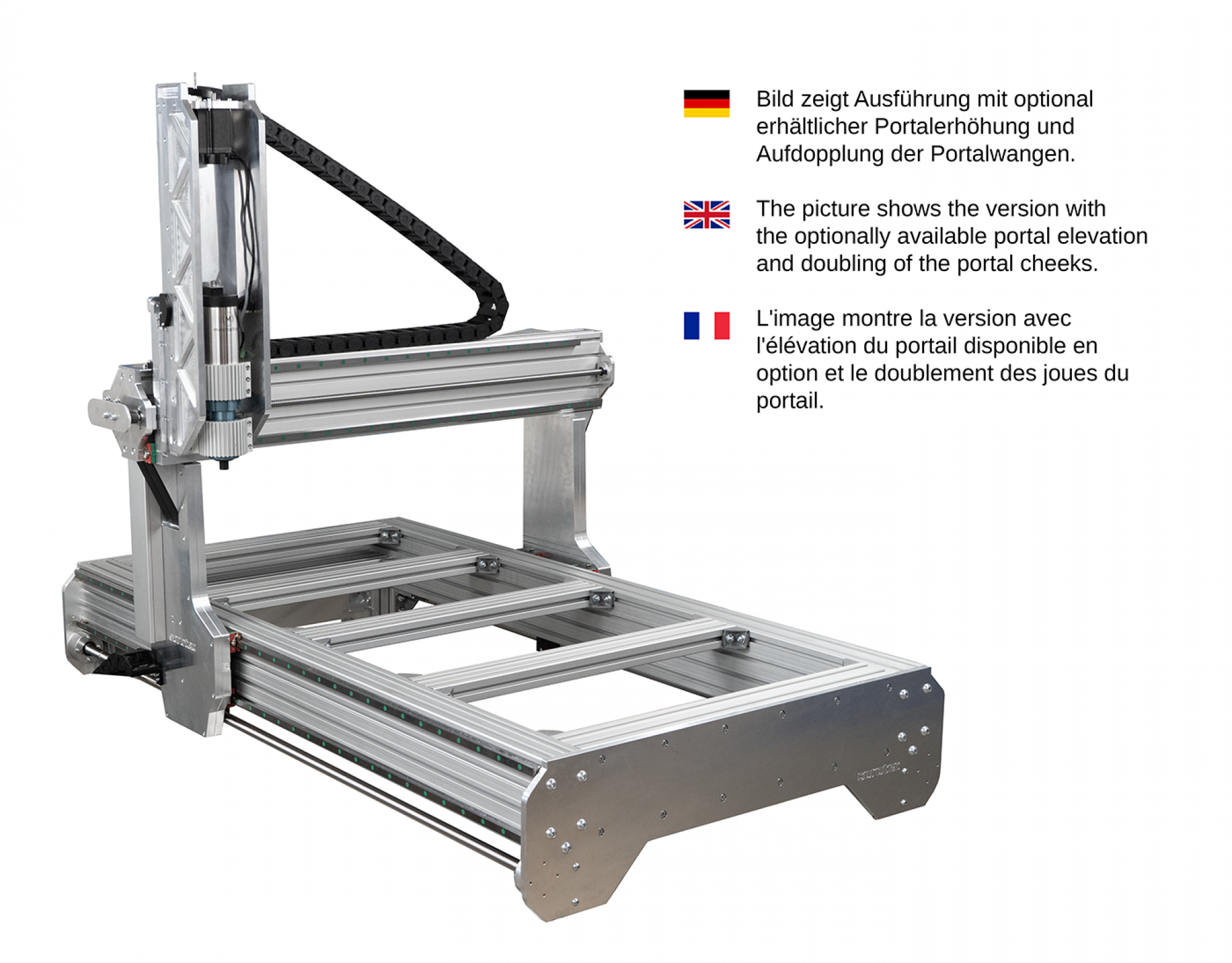

The machine is delivered in parts for self-assembly. The pictures show the machine in the fully assembled condition.
Technical Data |
Travel |
X: 2050 mm
Y: 1050 mm
Z: 220 mm
|
Clearance under Portal |
270 mm
(without table) |
Clamping area |
X: 2400 mm
Y: 1050 mm |
Outer dimensions |
L: 2450 mm
W: 1460 mm
|
Guides |
HIWIN Linear Guides
Size 20 on all Axis |
Ball screw spindles
|
X: 25 x 20 mm
Y: 16 x 10 mm
Z: 16 x 5 mm |
Weight |
approx. 250 kg |
Delivery content :
- 2 x linear rails each side on the X-Axis
- 2 spindles outside on X-Axis
- Aluminium profiles and machined parts to build the machine
- linear guides and carriages size 20
- Ball screw spindles
- HTD belts and pulleyes (for 8mm shaft)
- Mechanical reference switches for all axes
- Complete set of screws
- Assembly instructions
Available accessories:
- Mounting Kit for Electric
- Machine feet
- Stepper motors
- Controllers
- Drag chains
- Control software
- CAD/CAM Systems
- Spindles (with and without tool changer)
- Frame
- T-Slot tables
- Cooling systems
- Housing
- further accessories
Delivery time on request
The shop can not calculate forwarding costs, please contact us in case of order by email or phone.
