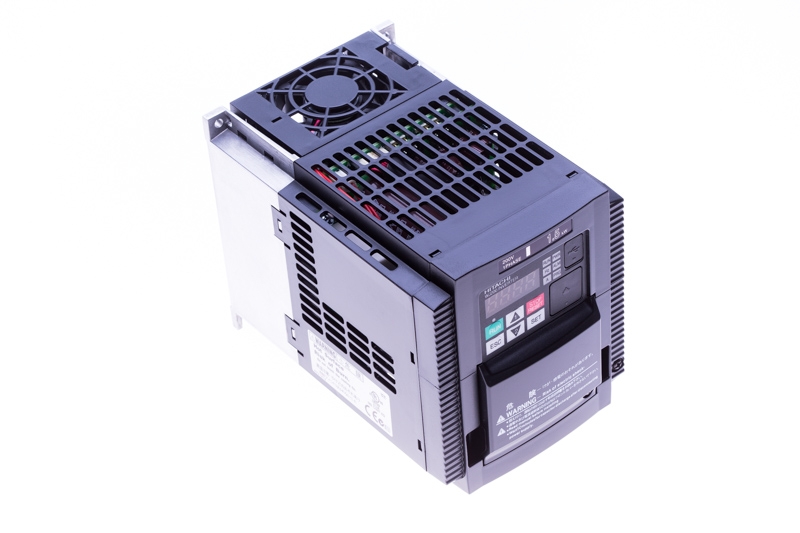

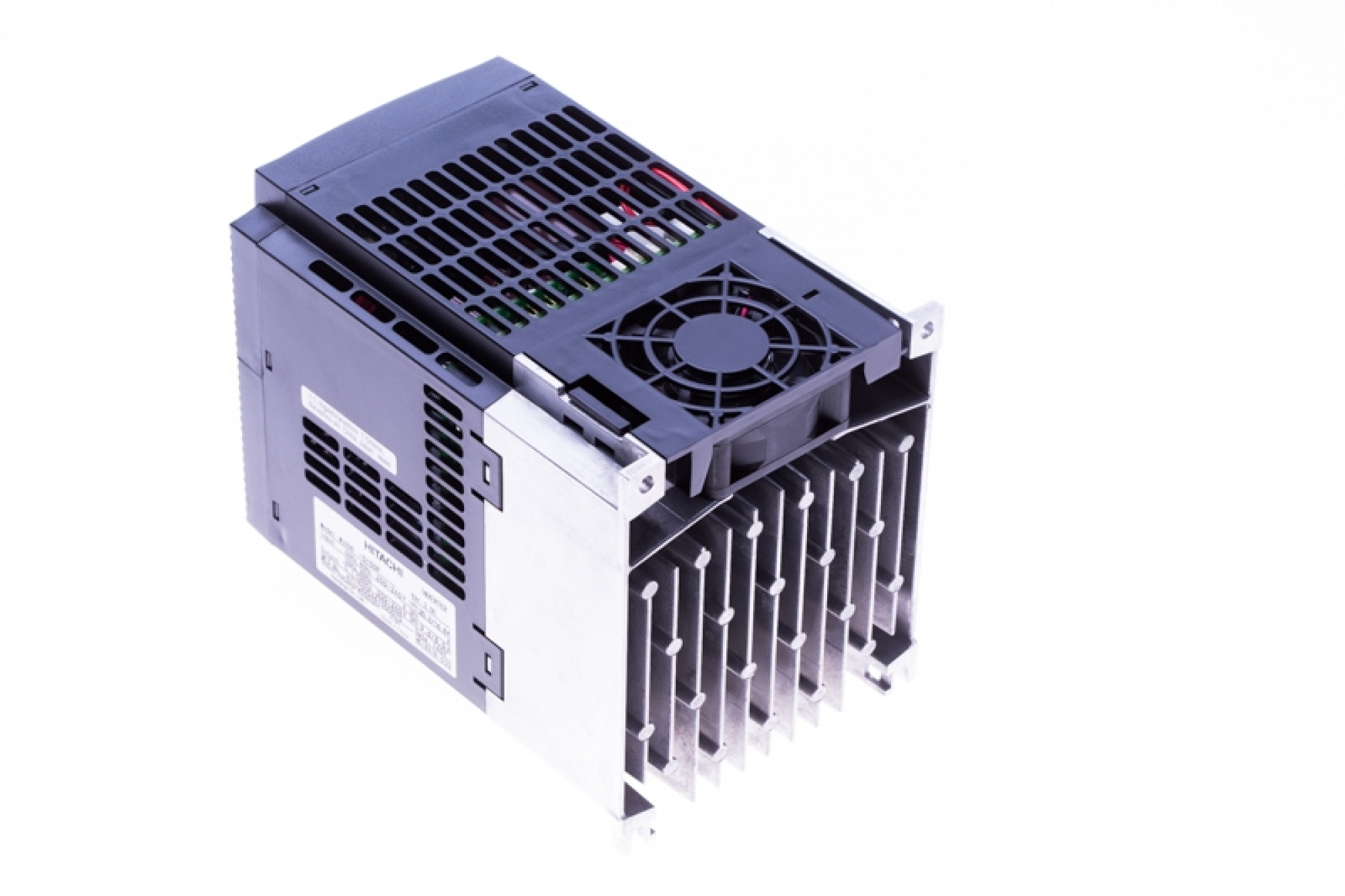

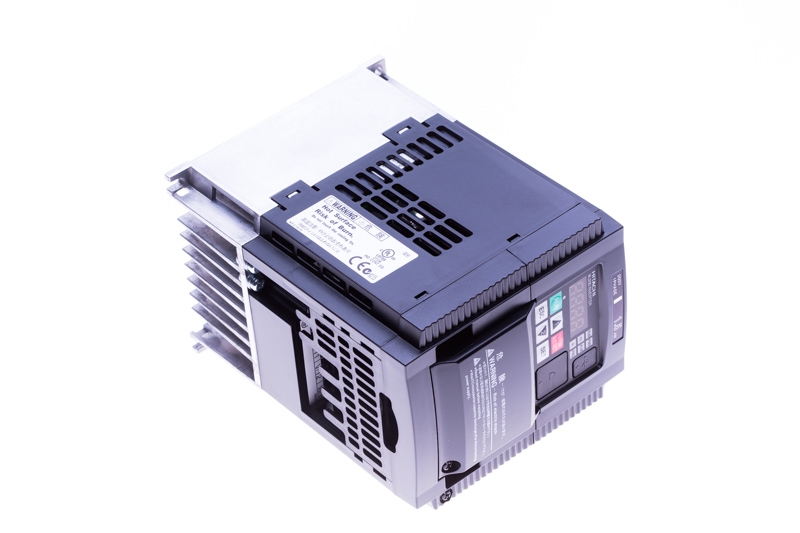

Inverter Omron MX2 | 0.4 kW | 200 V | 1-phase
Due to the tense situation on the market for electronic components worldwide, Omron frequency converters are unfortunately not available until further notice.
Please understand. We try to remedy this every day. As soon as the situation changes, we will point this out in our newsletter.
We recommend to install a line-filter in front of the converter, or order a converter set incl. line filter!
For programming via mini-USB the CX software is required.
This is not included in delivery.
Technical Data:
Please understand. We try to remedy this every day. As soon as the situation changes, we will point this out in our newsletter.
Inverter Omron MX2 | 0.4 kW | 200 V | 1-phase
Frequency inverters of the series MX2 are developed for versatile tasks of drive specially suited for applications with a high priority on cost efficiency. By its vector regulation it is very well suitable to operate with HF-spindles, since it offers a high starting torque of up to 200%. The MX2 presents the ideal combination of innovative ISPM-technology, powerful performance and practical design.We recommend to install a line-filter in front of the converter, or order a converter set incl. line filter!
For programming via mini-USB the CX software is required.
This is not included in delivery.
Technical Data:
- Frequency Inverter Omron MX2 0.4 kW
- Single-phase 200 ... 240 VAC, 50 ... 60 Hz
- 0.5 ... 400 Hz
- Vector regulated up to 400 Hz
- Integrated brake chopper
- Avoidance of overcurrent disconnections
- Dualrating
- Secure stop after ISO 13849-1 PLd
- Starting torque 200%
- Positioning and PM drive control
- Programming over Mini-USB
- integrated PLC-Function
OMRON MX2 Operating Instructions (german)
