End Mill Z3 Ø 8 mm Foam
End Mill Z3 Ø 8 mm Foam

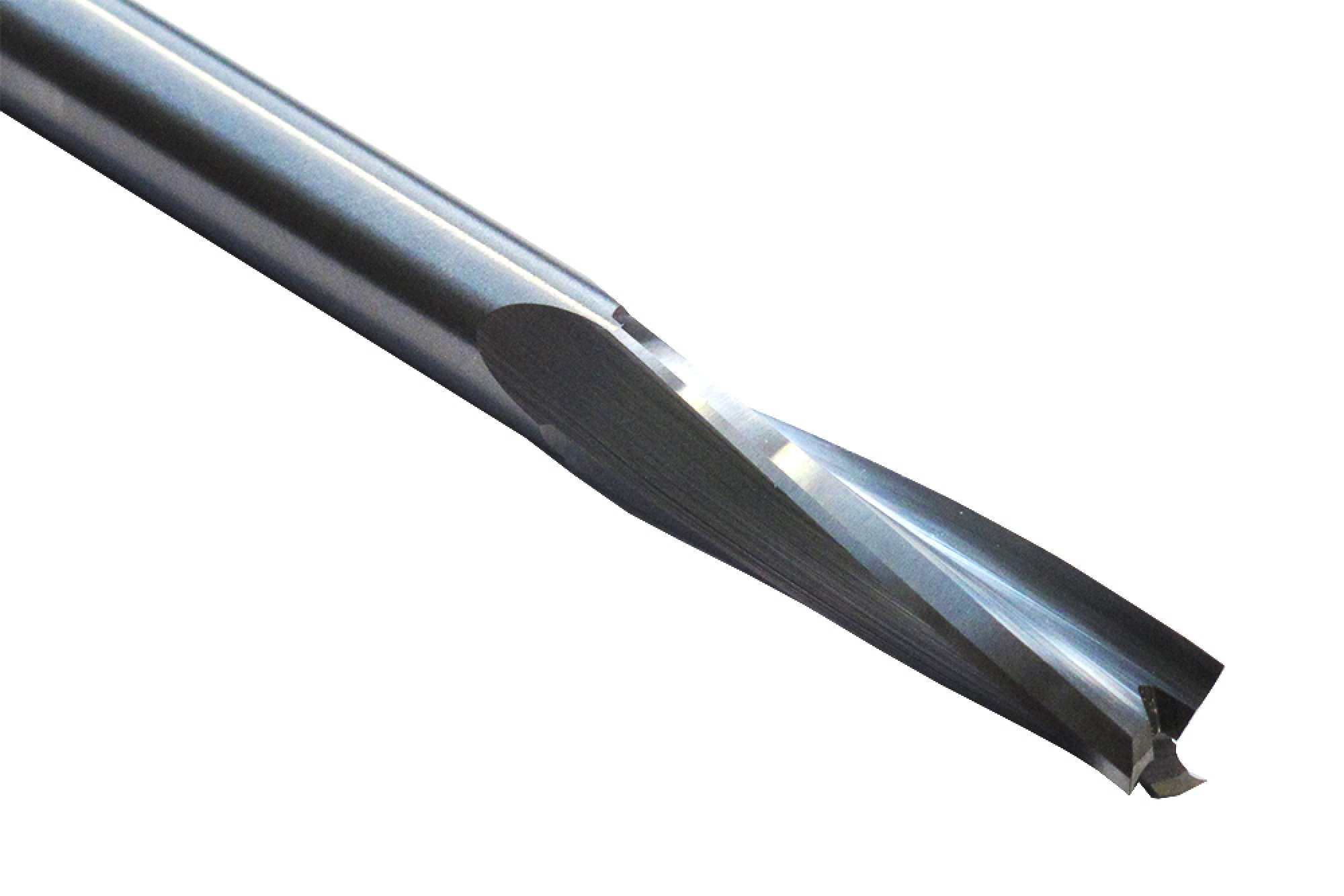

Due to the steep spiral of 10°, the tool performs only small tensile forces up to the workpiece and thus prevents fraying of the cut edge. Unlike straight-fluted tools, the chips are effectively transported out of the milling channel and thus avoids clogging of the tool.
- Solid Carbide-End Mill Ø 8 mm
- Upcut-spiral
- Industry Quality
- Z: 3-Flute

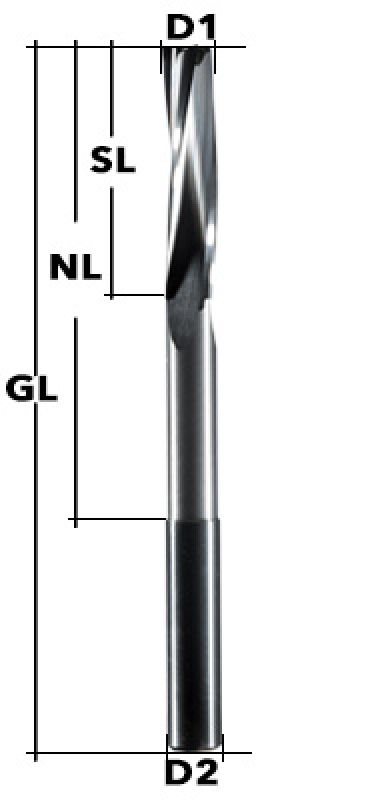

- D2 (Shank): 8 mm
- SL (spiral lenght): 32 mm
- NL: 70 mm
- GL (overall length): 100 mm
- behind cut Ø: 7.5 mm
Applications:
- Foam
- PU
- PUR
- PE
