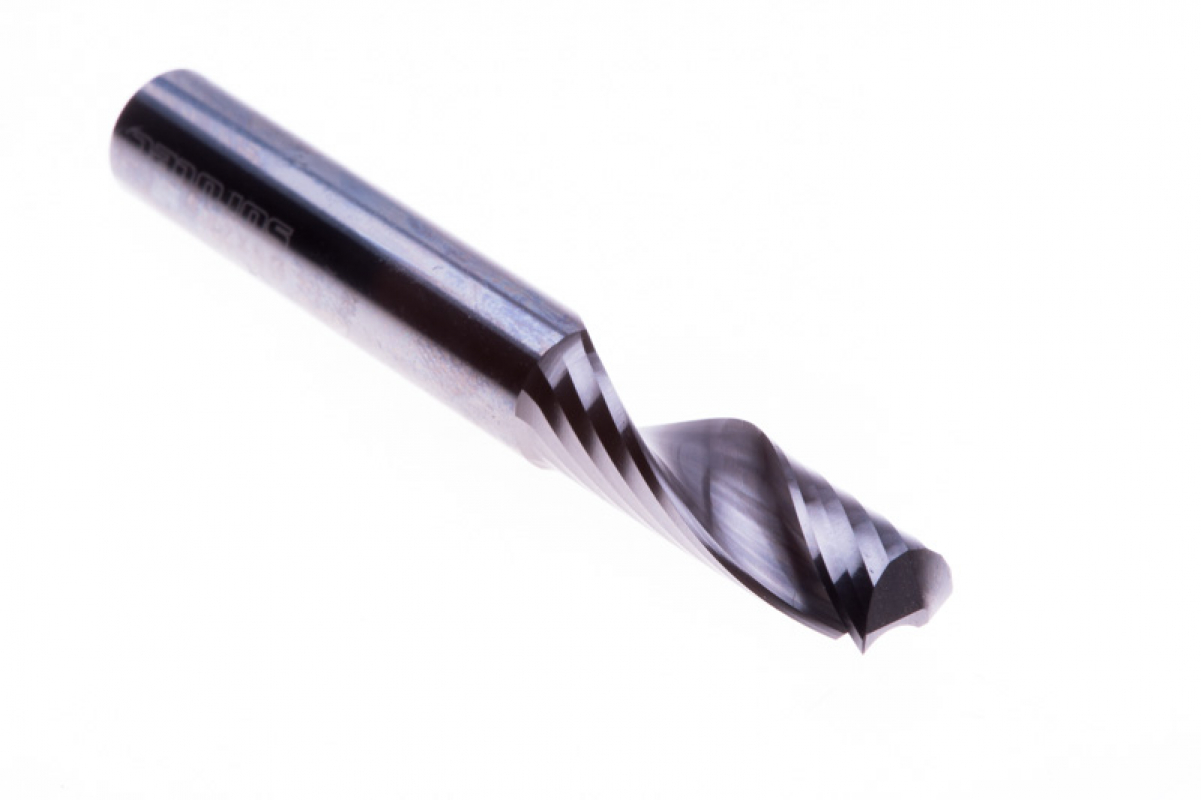

End Mill Z1 Ø 8 mm ALU
End Mill Z1 Ø 8 mm ALU
This mill has a very sharp, exposed cutting edge with an extreme grinding.The large flute enables a very good chip clearance. So the risk is low that the tool may clog during the milling process, also in softer sorts of aluminium.
Optimal for professional working.
Technical Specifications:
- Solid Carbide-End Mill Ø 8 mm
- Upcut-spiral
- Industry Quality
- Z: 1-Flute

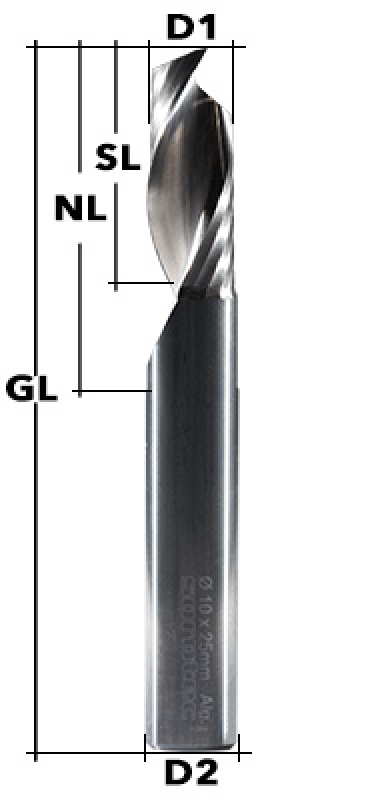

- D1: 8 mm
- D2 (Shank): 8 mm
- GL: 75 mm
- NL: 36 mm
Applications:
- Spezial mill for Aluminum
- Non-ferrous metals
- Acrylics
- Wood
