End Mill Z1 Ø 4 mm PROACRYL
End Mill Z1 Ø 4 mm PROACRYL
This mill has a very sharp, exposed cutting edge with an extreme grinding.The large polished flute enables a very good chip clearance. So the risk is low that the tool may clog during the milling process, also in Acrylics.
The polished edges on the milling cutter provide the best surface finish on the workpiece.
Optimal for professional working.
Technical Specifications:

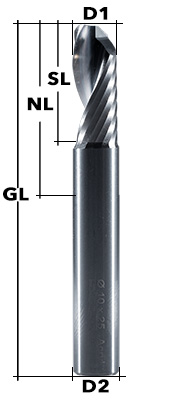

- Solid Carbide-End Mill Ø 4 mm
- Upcut-spiral
- Industry Quality
- Z: 1-Flute
- D1: 4 mm
- D2 (Shank): 4 mm
- GL: 60 mm
- SL: 16 mm
- NL: 30 mm
Applications:
- Spezial mill with polished flute and polished cutting edges for Acrylics
- Acrylics
- Wood
