End Mill Finishing Ø 0.8 mm
Technical Specifications:
- Solid Carbide End Mill Ø 0.8 mm
- 5 - 7 - Flutes for very fine cuts
- Fishtail Bottom
- Upcut-spiral

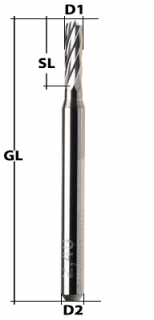

- D2 (Shank): 3.175 mm (1/8")
- SL (Spiral length): 5 mm
- NL (Usable Spiral length) = 0.85 x Spiral length
- GL (Overall length): 38 mm
Characteristics
- Industrial Quality
- Through Fishtail Bottom easy dive into material
- Low wear
- very clean surfaces
Applications
- For finish milling
Notes:
- Further diameters and spiral lengths on request.
- Left spiral and/or left cutting mills on request.
