End Mill Diamond Toothed Coated Ø 2.4 mm

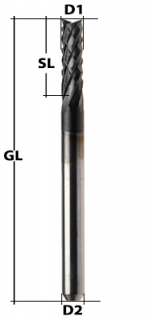

Technical Specifications:
- Diamond coated solid Carbide-End Mill Ø 2.4 mm
- Diamond toothed
- Fishtail
- D2 (Shank): 3.175 mm (1/8")
- SL (Spiral length): 9 mm
- NL (Usable Spiral length) = 0.85 x Spiral length
- GL (Overall length): 38 mm
Characteristics
- Industrial Quality
- Clean surfaces
- Through diamand coating very low wear
Applications
- Glass fibre
- Carbon fibre
- printed circuit boards
Notes:
- Further diameters and spiral lengths on request.
- Left spiral and/or left cutting mills on request.
