END Mill Z2 45° ALU Ø 10 mm with corner radius 0.5
END Mill Z2 45° ALU Ø 10 mm with corner radius 0.5 mm

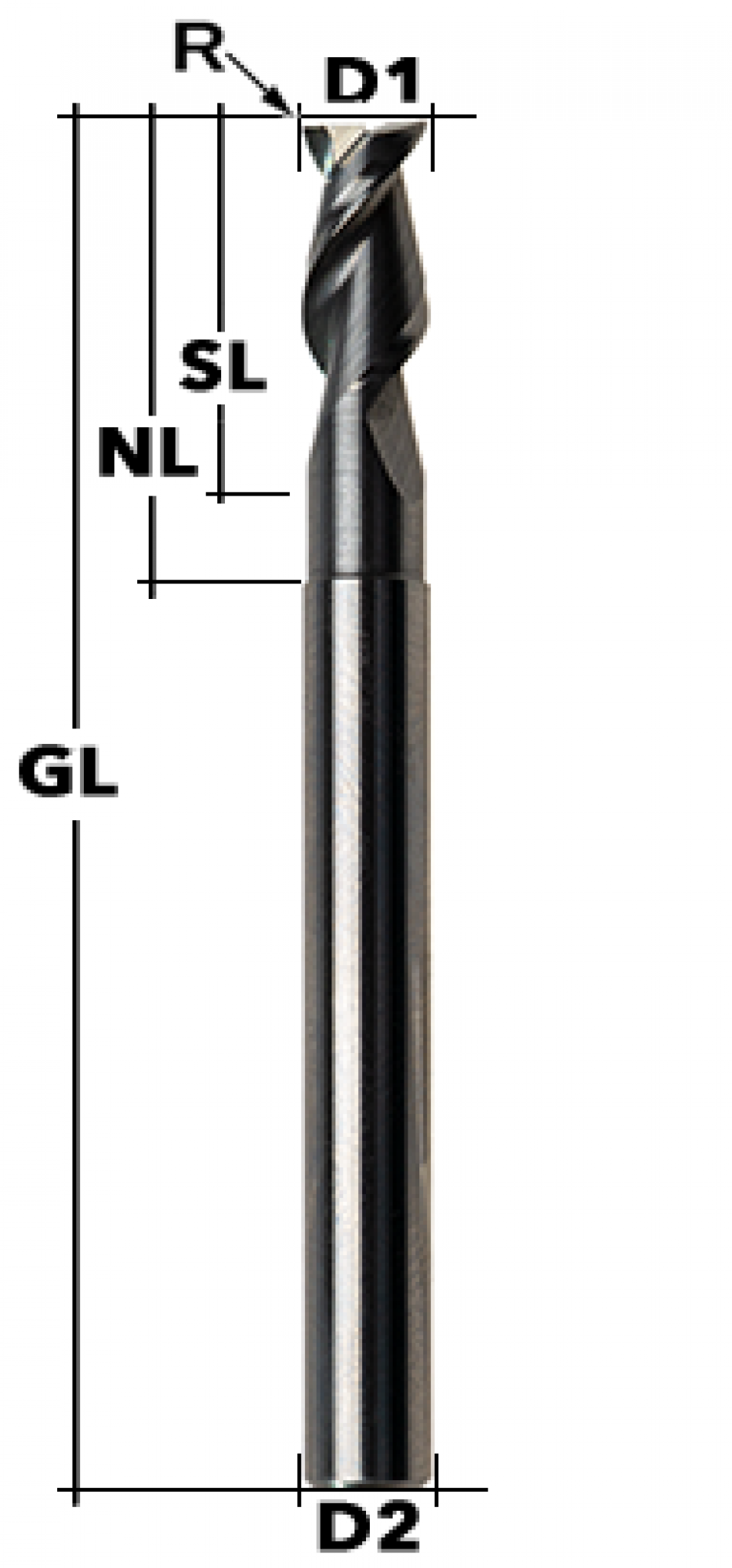

Technical Specifications:
- Solid Carbide-End Mill Ø 10 mm
- Corner Radius 0.5 mm
- Center Cut (Diving possible)
- Upcut-spiral
- Industry Quality
- 45° Spiral
- Z: 2-Flute
- D2 (Shank): 10 mm
- SL (Spiral length): 16 mm
- NL (Usable length) 31 mm
- GL (Overall length): 65 mm
Applications:
- Aluminum
Notes:
- Further diameters on request.
- 3 and 4 Flute Mills on request
- Extra long version on request
- Coating on request
