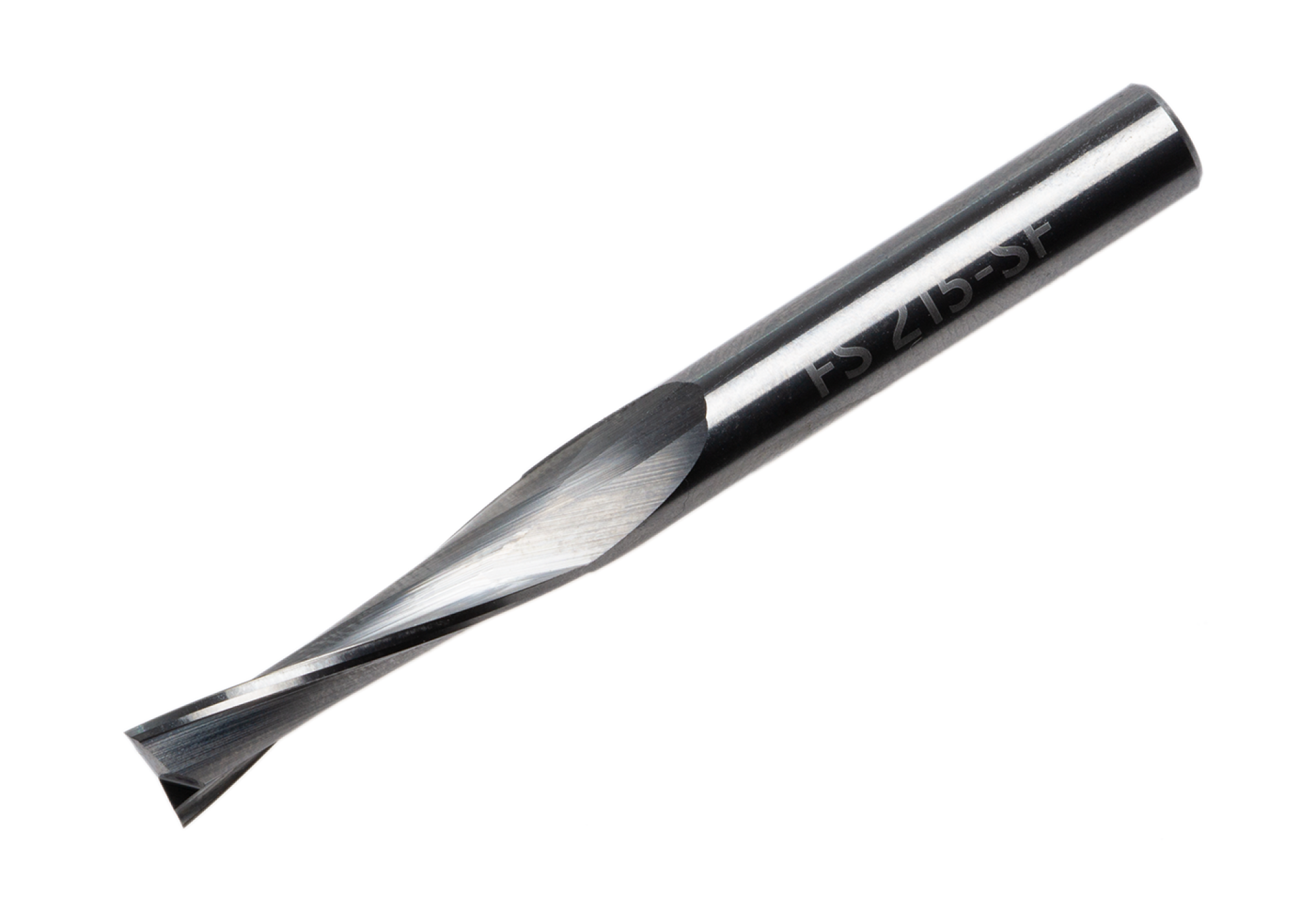

1206HO | Solid carbide end mill Z2 Ø 5 mm wood VR
1206HO | Solid carbide end mill Z2 Ø 4 mm wood VR
These wood milling cutters are the result of a new collaboration between Sorotec and a German manufacturer. New, intelligent manufacturing processes for large series enable outstanding quality at reasonable prices. So that projects do not fail because of expensive tools.The geometry of milling cutters specially designed for wood is characterized above all by the very steeply angled spiral groove. At 15°, there is hardly any tensile force that would tear the material upwards when cutting. This avoids frayed edges. On the other hand, the spiral is still sufficient to transport chips out of the groove and keep the milling channel clear.
- Solid carbide mill
- Upcut-spiral 15°
- Two flute
- Long service life

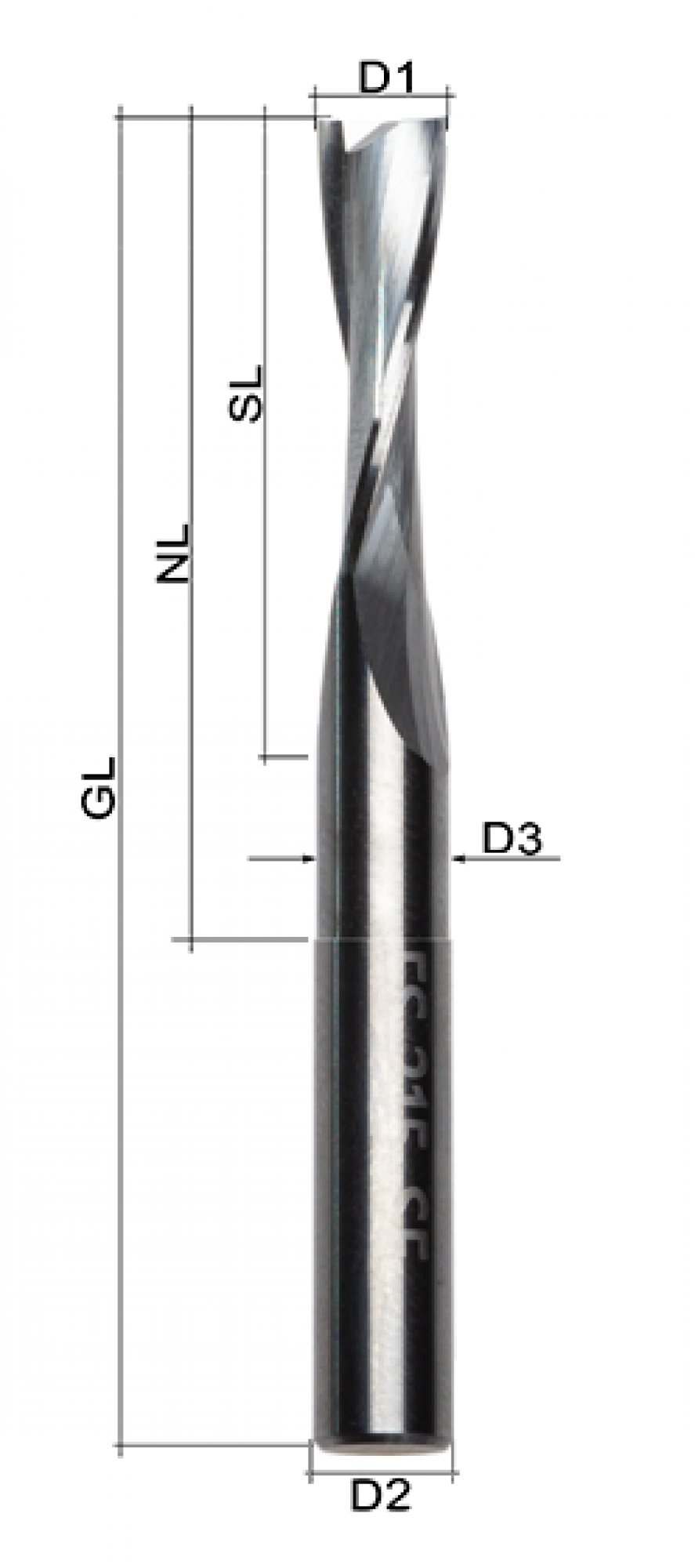

- D2 (Shank): 5 mm
- SL (spiral lenght): 16 mm
- NL: (usable length): 30 mm
- GL (overall length): 60 mm
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
