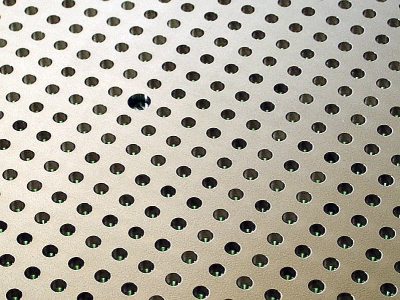

The ultimate vacuum table for wet and dry machine-cut
We suggest to put our vacuum tables on line together with a suitable vacuum pump. We developed a special connection adapter with an adjustable calibre of approximately 1" - 1.75". With that adapter you can, of course, use an ordinary vacuum cleaner as a "vacuum pump" - just as you like.
Moreover each module can be switched on or off by a valve or ball valve individually. The retaining force is proportional to covered area, the coefficient of friction and the pressure differential.
In order to increase the coefficient of friction a hole rubber mat is within our shipment.
This mat serves as a protection for the vacuum plate and if you work pieces need to be countersank. Hole rubber mats are wearing parts! You can order such mats in our shop reasonably priced.
Included in delivery:
- Vacuum-clamping-unit VT6060SEAL
- Connection-adaptor and hoses
- Rubber grid mat
- Rubber cover mat (for covering unused holes)
- Spanner for connection adaptor
Technical data:
- Material: Aluminium, Polyethylen
- Measure:650 x 650mm
- Clamping area: 600 x 600 mm
- Height: 25 mm
- Raster: 10 x 10 mm
- Connections: 4 x 9 mm
- Trimming spare: 4mm
- Adapter mat: Hole rubber
- Multi adapter: available
- Diameter: D = 32-42 mm
- Tube couplings: 4
- Can be used togeher with coolant
